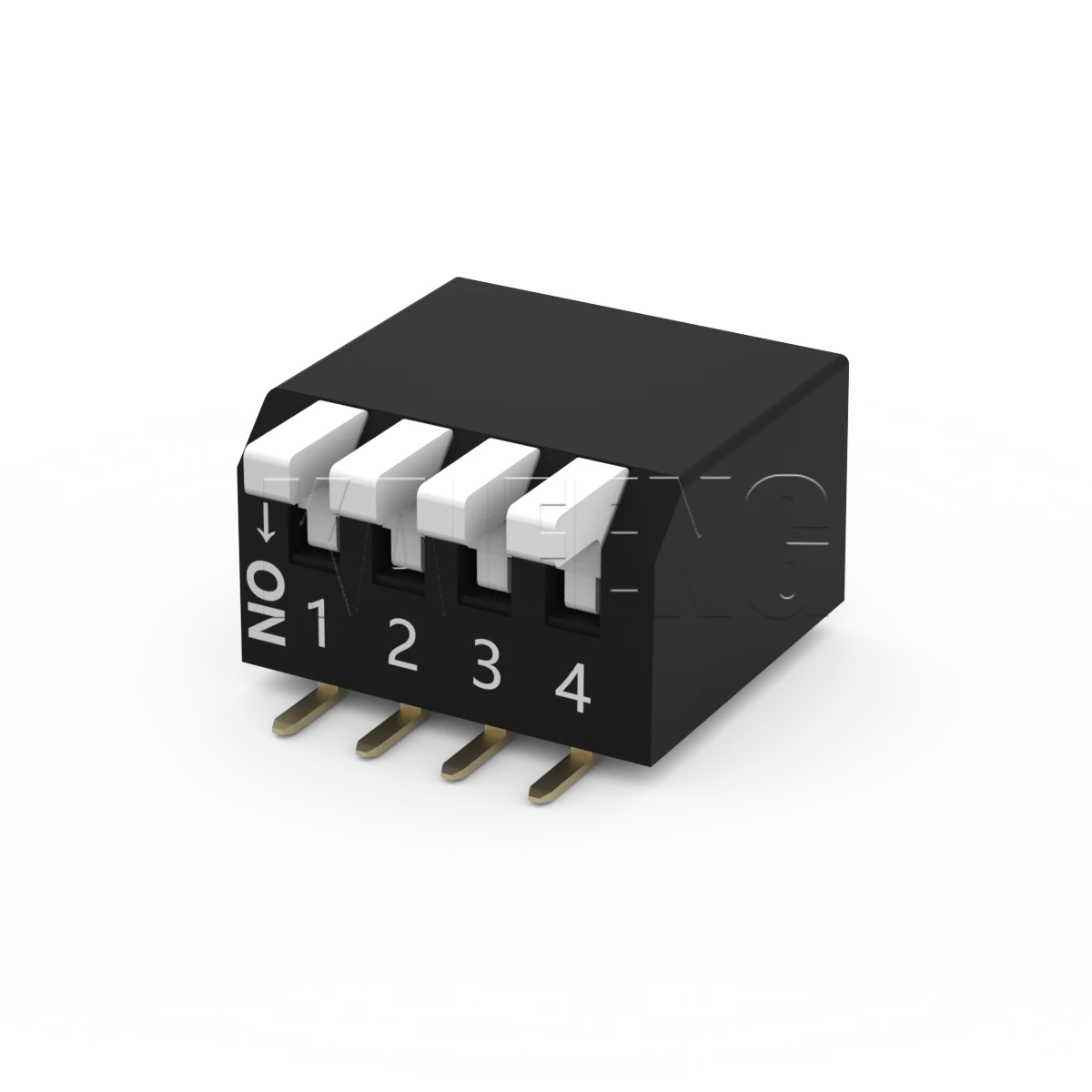

Dip Switch KF1038
Dip Switch SPECIFICATIONSRatingSwitching25mA,24VDCNon-Switching100mA,50VDCContact ResistanceInitial100mΩ/MaxAfter Life Test200mΩ/MaxInsulation Resistance100mΩ Min/100 VDCWithstand Vol
Color
Line count
02P
04P
06P
08P
10P
Consult more
Product Parameters
Product Drawing
Product Drawing
Material
Materials
Product packaging
Product Drawing
Material
Base
UL94V-0 Thermoplaslic,black
Housing
UL94V-0 Thermoplaslic,black
Actuator
UL94V-0 Thermoplaslic,White
PIN
Phosphor Bronze,Gold plating
Materials
Rated current
-
Switching
25mA,24VDC
Non-Switching
100mA,50VDC
Initial
≤100mΩ
After Life Test
≤200mΩ
Dielectric strength
≥100mΩ/100VDC
Withstanding voltage
300VAC/1min
Operating Force
800g/Max
Mechanical Life
≥1000cycles
Operaqting Temperrature
-40℃~+85℃
Storage Temperature
-40℃~+85℃
Product packaging
Weight
0.258g
SPQ
800pcs
Packaging
Tape&reel
MOQ
800pcs
Packaging
箱装(355X350X450mm)
