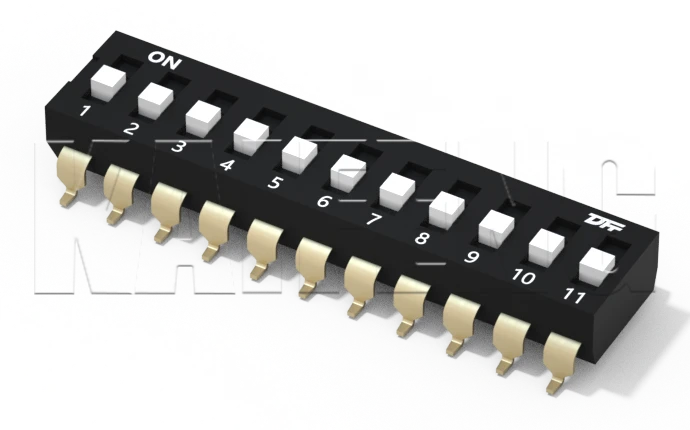

KF1027B-Products of Kaifeng Electronics - The Professional Manufacture of Terminal Blocks and Dip Switch

> Product Center > Dip Switch > KF1027B

Filter

PCB Terminal Block Pluggable Terminal Block Board end/line end Barrier Type

Installation method

Pluggable Terminal Block Screw Type PCB Terminal Block Barrier Type Mcs Connector

Board end/line end

Wire To Board (Pin) Wire To Board (Plug) Board To Board (Pin) Through wall type（fixed） Wire To Wire (Plug)

Crimping Method

Spring Type Wire Protecter Type Cage Type Screw Type Cage Spring Type

Incoming Direction

0° 90° 45°

Spacing

1.00 1.27 2.54 2.50 3.50 3.81 3.96 5.00 5.08 6.00 6.35 8.25 7.50 7.62 9.00 8.00 8.50 9.50 10.00 10.16 11.00 12.10 12.00 13.50 15.00 16.70

Current

5A-10A 11A-20A 21-24A 25A-32A 33A-45A 46A-76A 115-125A

Voltage

100V-150V 151V-300V 301V-400V 401V-500V 751V-1000V -
Installation method

Pluggable Terminal Block Screw Type PCB Terminal Block Barrier Type Mcs Connector

Board end/line end

Wire To Board (Pin) Wire To Board (Plug) Board To Board (Pin) Through wall type（fixed） Wire To Wire (Plug)

Crimping Method

Spring Type Wire Protecter Type Cage Type Screw Type Cage Spring Type

Incoming Direction

0° 90° 45°

Spacing

1.00 1.27 2.54 2.50 3.50 3.81 3.96 5.00 5.08 6.00 6.35 8.25 7.50 7.62 9.00 8.00 8.50 9.50 10.00 10.16 11.00 12.10 12.00 13.50 15.00 16.70

Current

5A-10A 11A-20A 21-24A 25A-32A 33A-45A 46A-76A 115-125A

Voltage

100V-150V 151V-300V 301V-400V 401V-500V 751V-1000V -
Installation method

Pluggable Terminal Block Screw Type PCB Terminal Block Barrier Type Mcs Connector

Board end/line end

Wire To Board (Pin) Wire To Board (Plug) Board To Board (Pin) Through wall type（fixed） Wire To Wire (Plug)

Crimping Method

Spring Type Wire Protecter Type Cage Type Screw Type Cage Spring Type

Incoming Direction

0° 90° 45°

Spacing

1.00 1.27 2.54 2.50 3.50 3.81 3.96 5.00 5.08 6.00 6.35 8.25 7.50 7.62 9.00 8.00 8.50 9.50 10.00 10.16 11.00 12.10 12.00 13.50 15.00 16.70

Current

5A-10A 11A-20A 21-24A 25A-32A 33A-45A 46A-76A 115-125A

Voltage

100V-150V 151V-300V 301V-400V 401V-500V 751V-1000V -
Installation method

Pluggable Terminal Block Screw Type PCB Terminal Block Barrier Type Mcs Connector

Board end/line end

Wire To Board (Pin) Wire To Board (Plug) Board To Board (Pin) Through wall type（fixed） Wire To Wire (Plug)

Crimping Method

Spring Type Wire Protecter Type Cage Type Screw Type Cage Spring Type

Incoming Direction

0° 90° 45°

Spacing

1.00 1.27 2.54 2.50 3.50 3.81 3.96 5.00 5.08 6.00 6.35 8.25 7.50 7.62 9.00 8.00 8.50 9.50 10.00 10.16 11.00 12.10 12.00 13.50 15.00 16.70

Current

5A-10A 11A-20A 21-24A 25A-32A 33A-45A 46A-76A 115-125A

Voltage

100V-150V 151V-300V 301V-400V 401V-500V 751V-1000V -

View Filter Results

Product Drawing Material Materials

Product Drawing

Material

Base

UL94V-0 Thermoplaslic，black
Cover

UL94V-0 Thermoplaslic，black
Button

UL94V-0 Thermoplaslic，White
Conductor

Phosphor Bronze,Gold plating

Materials

Rated current

-
Switching

100mA，50VDC
Non-Switching

25mA，24VDC
Contact resistance

-
Initial

50mΩ/Max
After Life Test

100mΩ/Max
Insulation resistance

100mΩ/Min.at 500VDC
Withstanding voltage

500VAC/1min
Operating Force

1000g/Max
Toggle stroke

0.8mm
Electrical life

2000 cycles/25mA,24VDC
Operaqting Temperrature

-40℃～+85℃
Storage Temperature

-40℃～+85℃
RoHS Compl iance

-
