Product Drawing Material Materials Product packaging

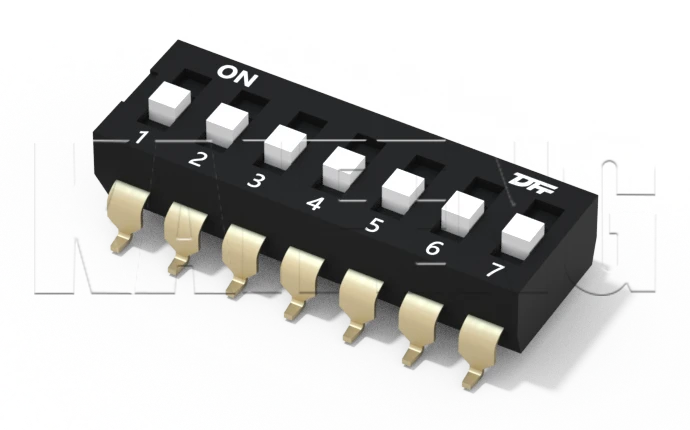

Product Drawing

Material

Base

UL94V-0 Thermoplaslic，black
Cover

UL94V-0 Thermoplaslic，black
Button

UL94V-0 Thermoplaslic，White
Conductor

Phosphor Bronze,Gold plating

Materials

Rated current

-
Switching

100mA，50VDC
Non-Switching

25mA，24VDC
Contact resistance

-
Initial

50mΩ/Max
After Life Test

100mΩ/Max
Insulation resistance

100mΩ/Min.at 500VDC
Withstanding voltage

500VAC/1min
Operating Force

1000g/Max
Toggle stroke

0.8mm
Electrical life

2000 cycles/25mA,24VDC
Operaqting Temperrature

-40℃～+85℃
Storage Temperature

-40℃～+85℃
RoHS Compl iance

-

Product packaging

Weight

0.68 g
SPQ

800pcs
Packaging

Tape&reel
MOQ

800pcs
Packaging

箱装(355X350X450mm)
