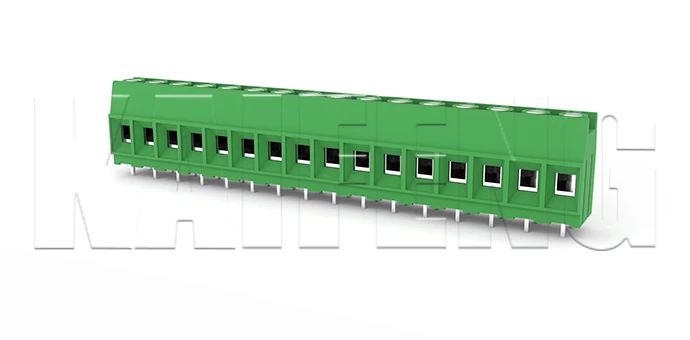

PCB Terminal Block KF136-10.16mm
PCB Terminal Block
MATERIAL:Screws:steel,M4Tin platedblock:Brass, Tin platedTerminal:Brass, Tin platedHousing:PA66UL94V-0ELECTRICALRated voltage:600VRated current:50AContact resistance:20mΩDielectric strength:5000MΩ/1000VWithstanding voltage :AC3000V/1MinApplicable wire diameter:20~6AWG10mm2MechanicalService temperature:-40℃~+105℃Max.soldering:+250℃for5SecTorque:1.2Nm(10.6lb.in)Strip length:10mm
Line count
- 02P
- 03P
- 04P
- 05P
- 06P
- 07P
- 08P
- 09P
- 10P
- 11P
- 12P
- 13P
- 14P
- 15P
- 16P
- 17P
- 18P
- 19P
- 20P
- 21P
- 22P
- 23P
- 24P
