Product Drawing Material Electrical Mechanical

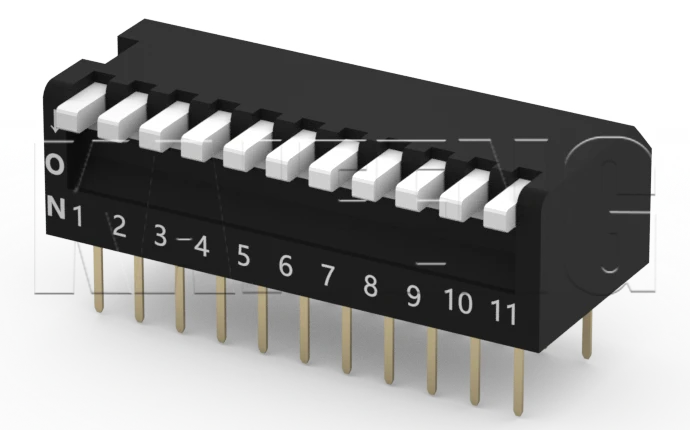

Product Drawing

Material

Base

UL94V-0 Thermoplaslic，black
Cover

UL94V-0 Thermoplaslic，black
Button

UL94V-0 Thermoplaslic，White
Terminal

Phosphor Bronze,Gold plating
Spring

Copper Alloy,Gold plated

Electrical

Electrical life

2000 operations per switch 24VDC,25mA
Switching

100mA , 50VDC
Non-Switching

25mA，24VDC
Dielectric strength

Minimum100MΩ，500VDC
Withstanding voltage

500VAC/1minute
The loop

Single contact single selection

Mechanical

Operation Force

10N（Max）
Stroke

20°
Operaqting Temperrature

-40℃～+85℃
Storage Temperature

-40℃～+85℃
