Product Drawing Material Electrical The loop single contatc singlf selecetion

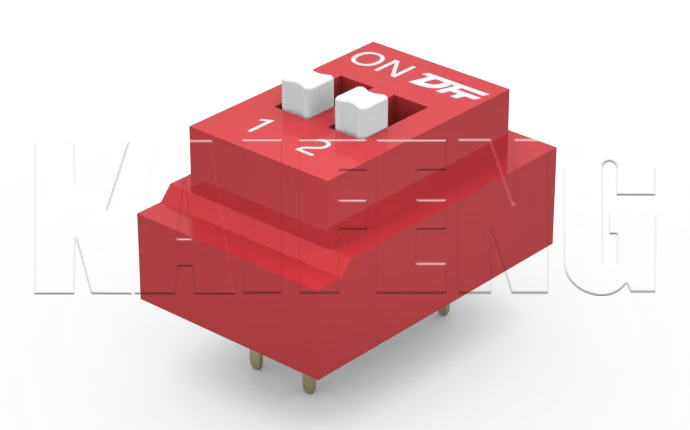

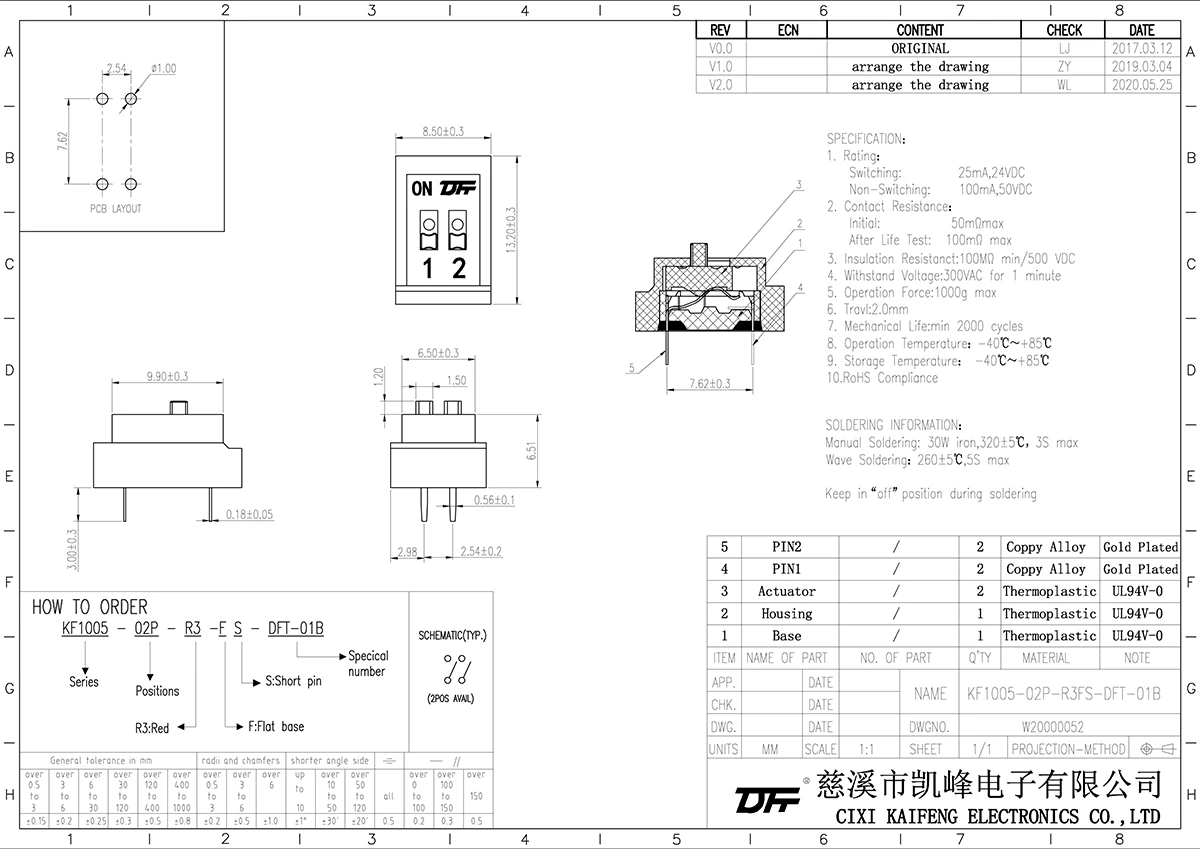

Product Drawing

Material

Base

UL94V-0 Thermoplaslic，black
Cover

UL94V-0 Thermoplaslic，Red Blue Black
Button

UL94V-0 Thermoplaslic，White
Terminal

Phosphor Bronze,Gold plating

Electrical

Electrical life

2000 operations per switch 24VDC,25mA
Non-switching rating

100mA,50VDC
Switching rating

25mA，24VDC
Dielectric strength

Minimum100MΩ，500VDC
Dielectric strength

500VAC, 1 min
Capacitance

Max5pF
The loop

Single contact single selection

The loop single contatc singlf selecetion

Weight

0.97 g
SPQ

55pcs
Packaging

Tube
MOQ

2420pcs
Packaging

箱装(525X290X240mm)
