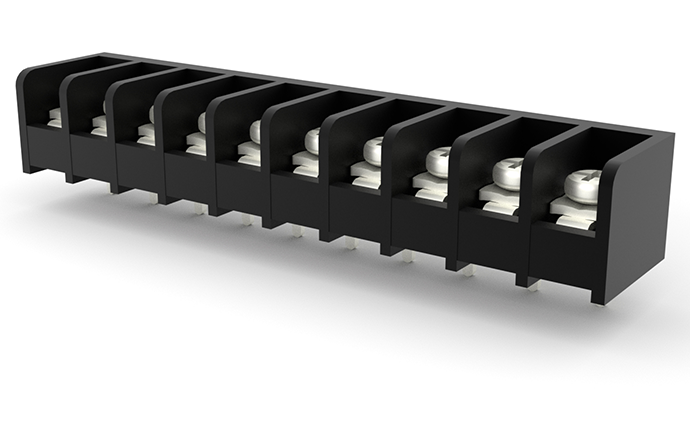

Barrier Terminal Block HB-762-7.62mm
Material：Screws(Screw):M3.5,Steel，Ni platedSteel,NiPlatedTerminal(Pinheader):Brass，0.7tTin platedBrass,TinplatedHousing(Housing):PA66,UL94V-0·Electrical(Electrical)Rated voltage(RatedVoltage):300VRated current(RatedCurrent):20AInsulation resistance
Color
  • Kaifeng Electron
  • Kaifeng Electron
Line count
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P
  • 13P
  • 14P
  • 15P
  • 16P
  • 17P
  • 18P
  • 19P
  • 20P
  • 21P
  • 22P
  • 23P
  • 24P
Kaifeng Electron Kaifeng Electron
Consult more
Kaifeng Electron Kaifeng Electron
Product Parameters
Kaifeng Electron Kaifeng Electron
Product Drawing
Product Drawing Material Electrical Mechanical Packaging
Product Drawing
Kaifeng Electron
Material
  • Screws
    M3.5 Steel Zinc plated
  • Terminal
    Brass，0.7Tin Plated
  • Housing
    PA66, UL94V- 0
Electrical
  • Rated voltage
    300V UL丨 450V lEC
  • Rated current
    15A UL丨 24A lEC
  • Insulation resistance
    500MΩ/DC500V
  • Withstanding voltage
    AC2000V/1Min
  • Wire range
    22-14AWG 2.5mm²
Mechanical
  • Temp.rang
    LOW-40℃ 丨TOP+105℃
  • Torque
    0.8N.m 7.02Lb.in
Packaging
  • Net Weight
    18.5g
  • SPQ
    25pcs
  • Packaging
    Bagged
  • MOQ
    300pcs
  • Packaging
    Box45cm*28cm*27cm
