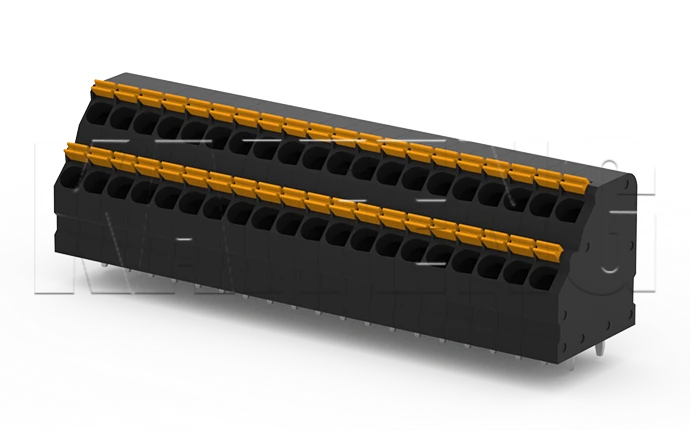

PCB Terminal Block KF550H-3.5mm

Material：Material：①Housing：PA66，UL94V-0②Cover：PA66，UL94V-0③Cover：PA66，UL94V-0④Button：PA66，UL94V-0⑤Reed：Stainless steel⑥Long welding leg：Red copper，Tin plated⑦Short welding leg：Red copper，Tin platedElectricalULIECRated voltage300V 320V Rated current10A17.5AContact resistance20mΩInsulation resistance500MΩ/DC500VWithstanding voltage AC2000V/1minWire range26-16AWG 1.5mm²
