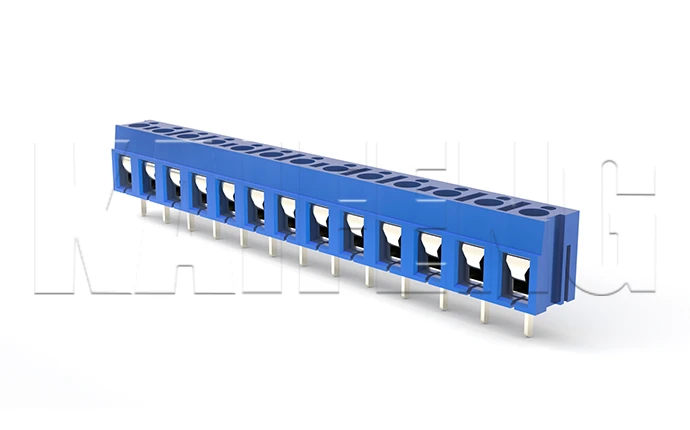

PCB Terminal Block KF705A-7.50mm

Screws：M2.5 Steel Zinc plated,"-"slot type 丨 Select：- 丨 Pin header：Copper alloy，Tin plated 丨 Housing：PA66, UL94V- 0 丨 Electrical：ULIEC 丨 Rated voltage：300V-450V 丨 Rated current：12A-24A 丨 Contact resistance：20mΩ(Max) 丨 Insulation resistance：500MΩ/DC500V 丨 Withstanding voltage ：AC2500V/1min 丨 Wire range：22-14AWG 2.5mm² 丨 MechanlicalTemp.rang：-30℃～+120℃ 丨 Max.soldering：+250℃,5sec

Color
