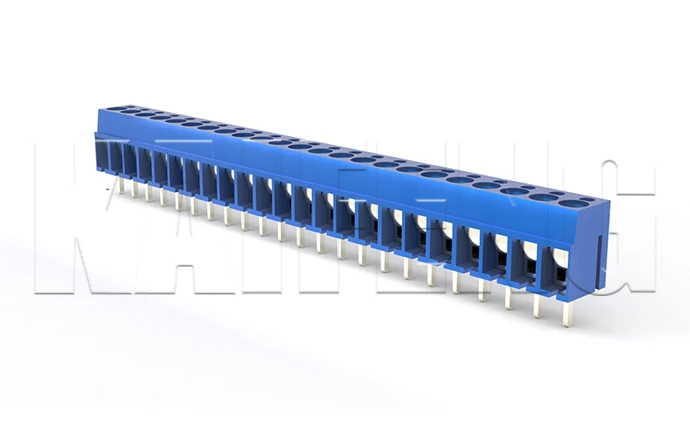

PCB Terminal Block KF305-5.00mm

Screws：M2.5,Steel Zinc plated,"-"slot type 丨 Select：- 丨 Pin header：Copper alloy，Tin plated 丨 Housing：PA66 UL94V-0 丨 Electrical：ULIEC 丨 Rated voltage：250V-300V 丨 Rated current：12A-24A 丨 Contact resistance：20mΩ 丨 Insulation resistance：500MΩ/DC500V 丨 Withstanding voltage ：AC1250V/1min 丨 Wire range：22-14AWG 1.0-2.5mm² 丨 MechanlicalTemp.rang：-40℃～+105℃ 丨 Max.soldering：+250℃,5sec
