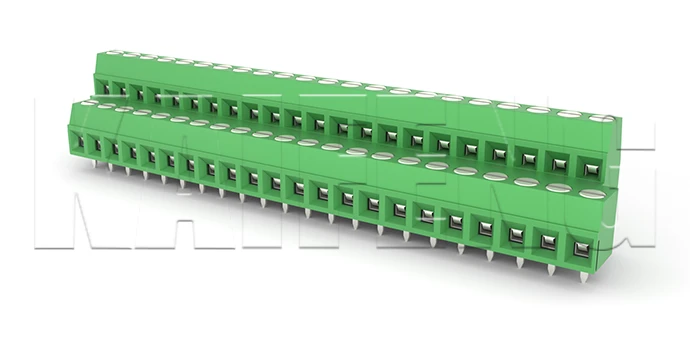

PCB Terminal Block KF127DG-5.08mm
PCB Terminal Block
MATERIAL:MATERIAL①Screws:M2.5Steel Zinc plated,"-"slot type②Housing:PA66,UL94V-0③square box:Brass, Tin plated④Pin header:Brass, Tin platedELECTRICALULIECRated voltage300V250VRated current12A15AContact resistance20mΩ(Max)Insulation resistance500MΩ\DC500VWithstanding voltage AC2000V\1MinWire range26-14AWG2.5mm²MechanicalTemp.rang-40℃~+105℃Max.soldering+250℃,5secTorque0.4N
Line count
- 02P
- 03P
- 04P
- 05P
- 06P
- 07P
- 08P
- 09P
- 10P
- 11P
- 12P
- 13P
- 14P
- 15P
- 16P
- 17P
- 18P
- 19P
- 20P
- 21P
- 22P
- 23P
- 24P
