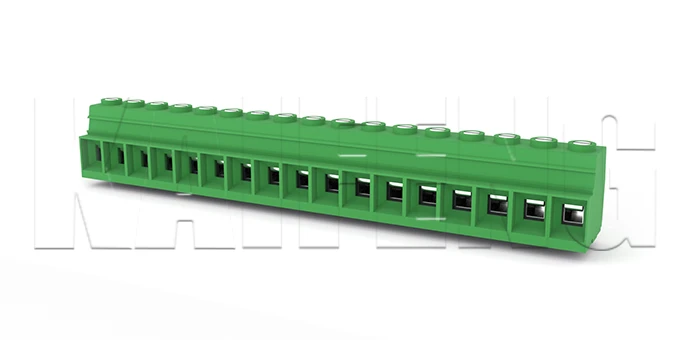

PCB Terminal Block KF137-15.00mm
PCB Terminal Block MATERIAL:Screws:M5steel,Ni plated材料:Brass, Tin platedPin header:Brass, Tin platedHousing:PA66UL94V-0·ELECTRICALRated voltage:600VRated current:90AContact resistance:20m?Insulation resistance:5000M?\1000VWithstanding voltage :AC300V\1MinWire range:22-2AWG25mm2·MechanicalTemp.rang:-40℃∽+105℃Max.soldering:+250 ℃ / 5S torque:2Nm(17.54lb.in)Strip length:15-18mm
Color
  • Kaifeng Electron
Line count
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P
  • 13P
  • 14P
  • 15P
  • 16P
  • 17P
  • 18P
  • 19P
  • 20P
  • 21P
  • 22P
  • 23P
  • 24P
Product Drawing
Kaifeng Electron
Electrical properties
  • Rated voltage
    600V UL丨  1000  lEC
  • Rated current
    115A UL丨 125A  lEC
  • Contact resistance
    20mΩ(Max)
  • Insulation resistance
    500MΩ\DC500V
  • Withstanding voltage
    AC3500V\1Min
  • Wire range
    20-2AWG 35.0mm²
Mechanical behavior
  • Temp.rang
    LOW-40℃ 丨TOP+105℃
  • Max.soldering
    +250℃,5sec
  • Torque
    2.0N.m 17.5Lb.in
  • Strip length
    15-18mm
Product packaging
  • Weight
    Xg
  • SPQ
    12pcs
  • Packaging
    Ziploc
  • MOQ
    12pcs
  • Packaging
    Box45cm*28cm*27cm
