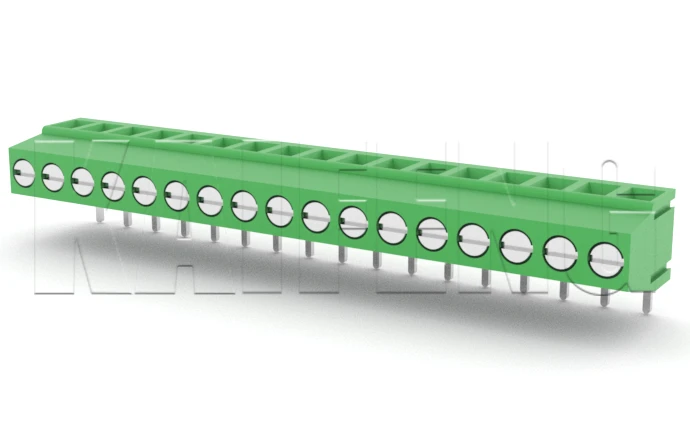

PCB Terminal Block KF128R(H:13.9)-5.08mm

PCB Terminal Block MATERIAL：Screws:M2.5,Steel Zinc platedcontact:Brass, Tin platedPin header:Brass, Tin platedHousing:PA66,UL94V-0·ELECTRICALRated voltage:300VRated current:10AContact resistance:20mΩInsulation resistance:5000MΩ/1000VWithstanding voltage :AC1500V/1MinWire range:24-12AWG2.5mm²·MechanicalTemp.rang:-40℃～+105℃Max.soldering:+250℃,5 secondsTorque:0.4Nm(3.6lb.in)Strip length:6-7mm

Color

Line count

Consult more

Product Parameters

Product Drawing
