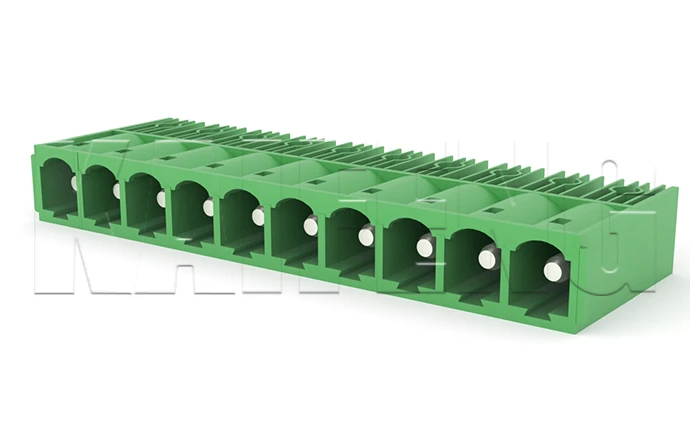

Pluggable Terminal Block KF5EKR-10.16mm

Pluggable Terminal Block MATERIAL：Nut:Brasscontact:-Pin header:Red copper，TinningHousing:PA66，UL94V-0ElectricalULIECRated voltage300V600VRated current52A57AContact resistance20mΩInsulation resistance500MΩ/DC500VWithstanding voltage AC6000V/1minWire range-MechanicalTemp.rang-40℃～+150℃Max.soldering+250℃,5secTorque-Strip length-

Color
