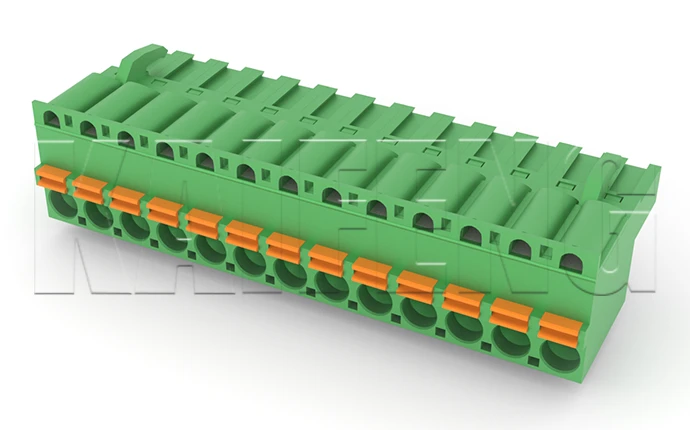

Pluggable Terminal Block KF2EKDF-5.08mm

Pluggable Terminal Block MATERIAL：MATERIALClip: Phosphor bronze，Tinningcontact: -Reed: Stainless steelHousing: PA66，UL94V-0ElectricalULIECRated voltage300V 320V Rated current10A20AContact resistance20mΩInsulation resistance500MΩ/DC500VWithstanding voltage AC2000V/1minWire range26-12AWG 2.5mm²MechanicalTemp.rang-40℃～+105℃ Max.soldering+250℃, 5secTorque

Color
