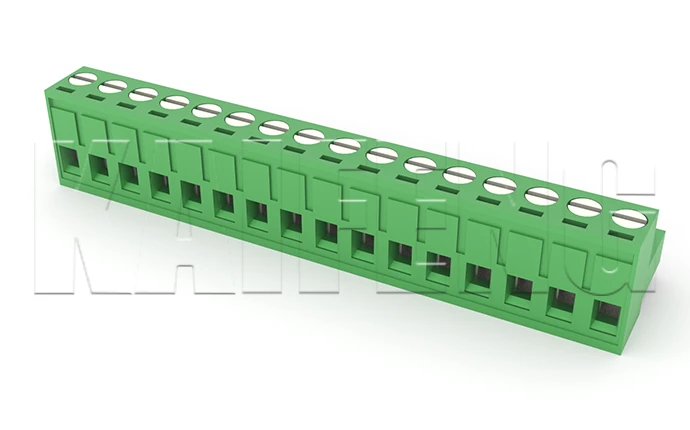

Pluggable Terminal Block KF2EDG-X-5.08mm

Pluggable Terminal Block MATERIAL：M3.0 Steel Galvanized contact: Phosphor bronzePin header：-Housing: PA66，UL94V-0ElectricalULIECRated voltage300V 320V Rated current15A20AContact resistance20mΩInsulation resistance500MΩ/DC500VWithstanding voltage AC2000V/1minWire range28-12AWG 2.5㎜²MechanicalTemp.rang-40℃～+105℃ Max.soldering+250℃,5se

Color
