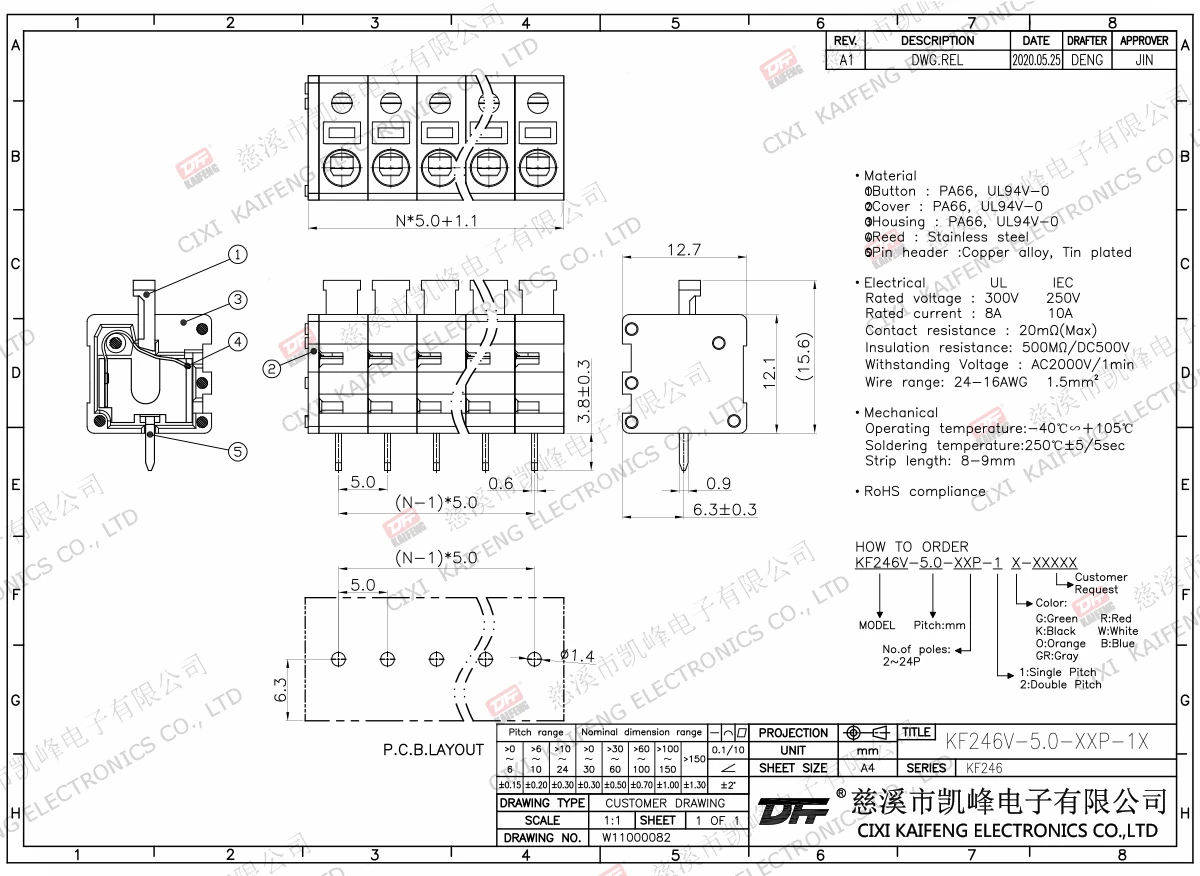

PCB Terminal Block KF246V-5.00mm

Terminal Material：①Button：PA66，UL94V-0②Cover：PA66，UL94V-0③Button：PA66，UL94V-0④Reed：Stainless steel⑤Pin header：Brass，Tin platedElectricalULIECRated voltage300V 250V Rated current8A10AContact resistance20mΩInsulation resistance500MΩ/DC500VWithstanding voltage AC2000V/1minWire range24-16AWG 1.5mm²MechanlicalTemp.rang-40℃～+105℃

Color
