PCB Terminal Block KF14HWP-13.50mm
PCB Terminal Block MATERIAL:Screws(Screw): M4.0,Steel Zinc plated Steel,Zinc Plated Pin header(Pin header): Brass, Tin plated Brass,Ni plated Housing(Housing): Nylon PA66,UL94V-2 &n
Color
  • Kaifeng Electron
Line count
  • 01P
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P

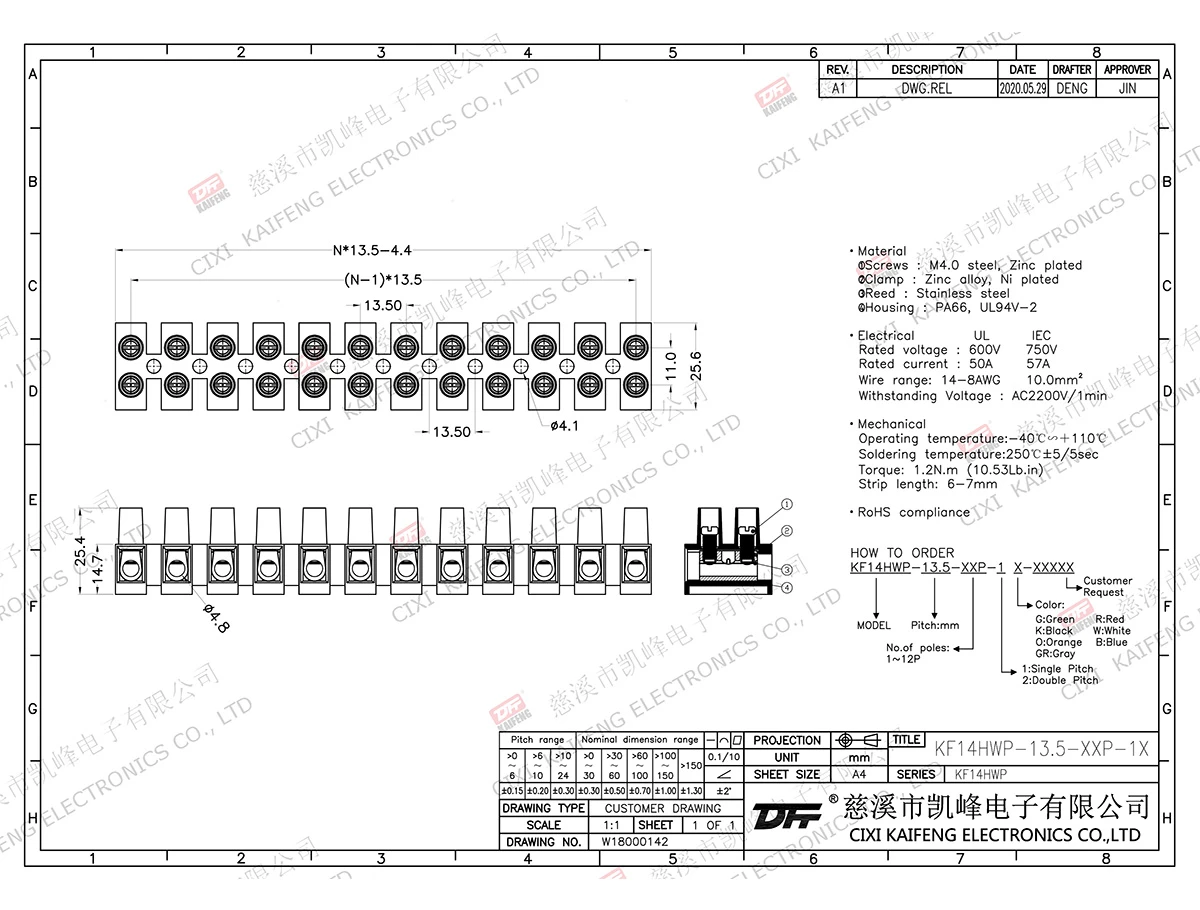

Product Drawing
Kaifeng Electron
Material and Plating
  • Screws
    M4.0,Steel Zinc plated
  • Square
    Brass, Tin plated
  • Housing
    Nylon PA66,UL94V-2
Electrical properties
  • Rated voltage
    750V UL丨 - lEC
  • Rated current
    7.5A UL丨 - lEC
  • 测试电流
    to EN 60998:57A
  • Wire range
    10.0mm²
Mechanical behavior
  • Temp.rang
    LOW-40℃ 丨TOP+110℃
Product packaging
  • Weight
    Xg
  • SPQ
    12pcs
  • Packaging
    Ziploc
  • MOQ
    12pcs
  • Packaging
    Box45cm*28cm*27cm
