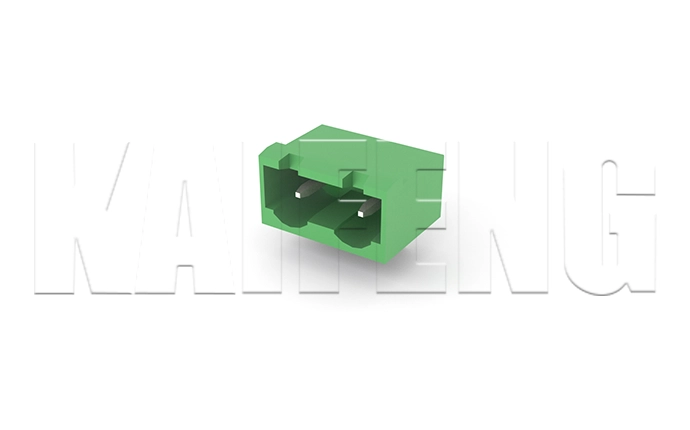

Pluggable Terminal Block KF2EDGCR-X-7.50mm

Pluggable Terminal Block MATERIAL：contact: -Pin header: Brass, Tin platedHousing: PA66，UL94V-0ElectricalULIECRated voltage300V 400V Rated current15A20AContact resistance20mΩInsulation resistance500MΩ/DC500VWithstanding voltage AC2500V/1minWire range-MechanicalTemp.rang-40℃～+105℃ Max.soldering+250℃, 5secTorque-Strip length-
