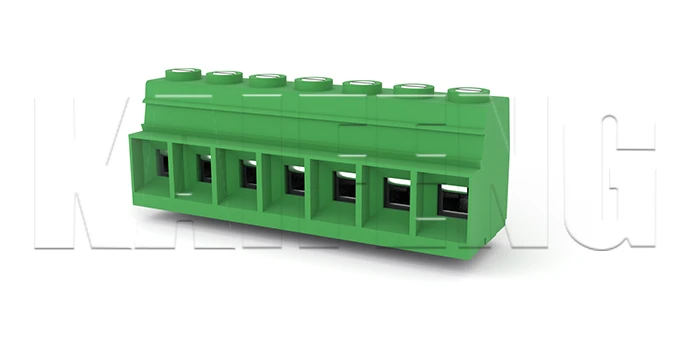

PCB Terminal Block KF137-15.00mm

PCB Terminal Block MATERIAL：Screws:M5steel,Ni plated材料:Brass, Tin platedPin header:Brass, Tin platedHousing:PA66UL94V-0·ELECTRICALRated voltage:600VRated current:90AContact resistance:20m?Insulation resistance:5000M?\1000VWithstanding voltage :AC300V\1MinWire range:22-2AWG25mm2·MechanicalTemp.rang:-40℃∽+105℃Max.soldering:+250 ℃ / 5S torque:2Nm(17.54lb.in)Strip length:15-18mm

Color

Line count

Consult more

Product Parameters

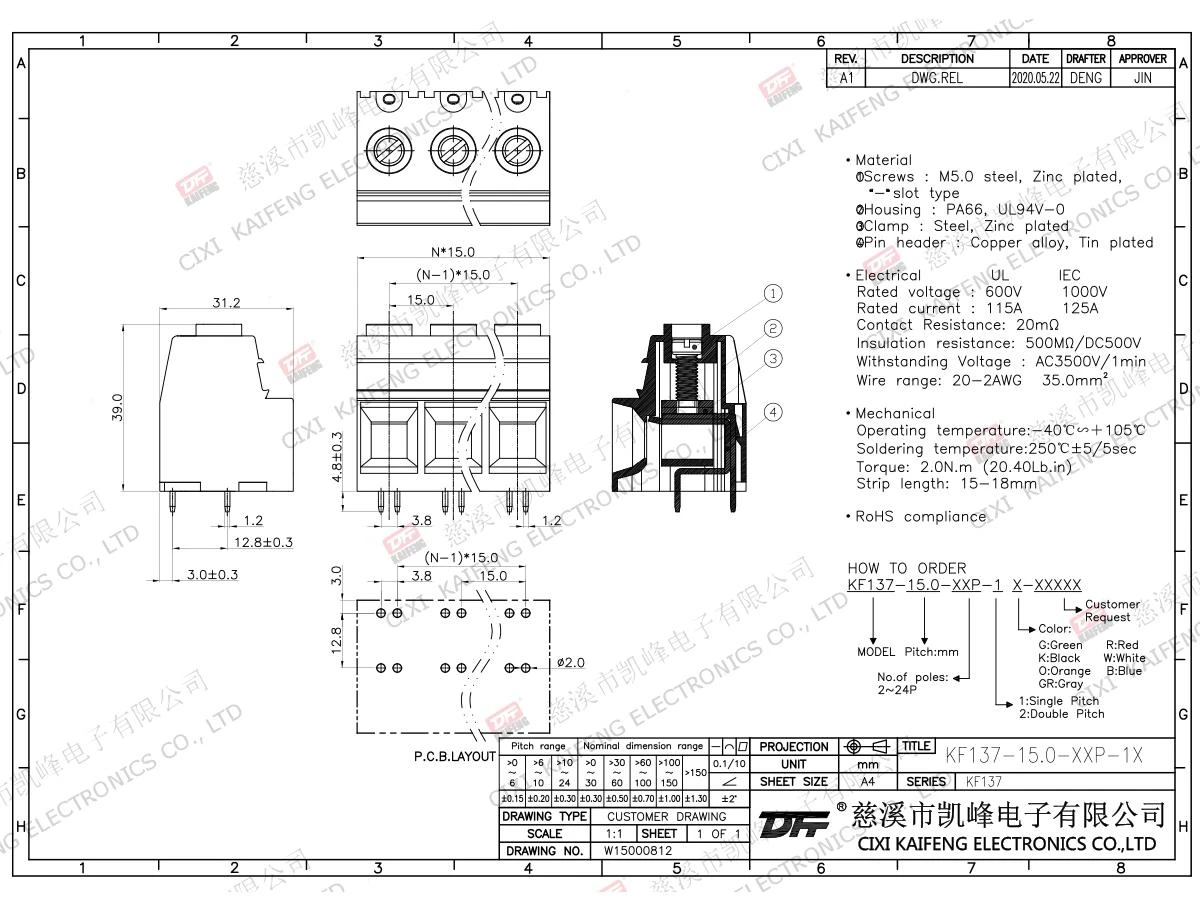

Product Drawing
