PCB Terminal Block KF129V-5.00mm
PCB Terminal Block MATERIAL:Screws:M3steel,Ni platedContact material:BrassPin header:Brass, Tin platedHousing:PA66UL94V-0·MechanicalTemp.rang:-40℃~+105℃Max.soldering:+250℃5S torque:0.4Nm(3.6lb.in)Strip length:6-7mm·ELECTRICALRated voltage:300VRated current:20AContact resistance:20m?Insulation resistance:5000M?\1000VWithstanding voltage :AC1500V\1MinWire range:24-12AWG2.5mm2
Color
  • Kaifeng Electron
Line count
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P
  • 13P
  • 14P
  • 15P
  • 16P
  • 17P
  • 18P
  • 19P
  • 20P
  • 21P
  • 22P
  • 23P
  • 24P

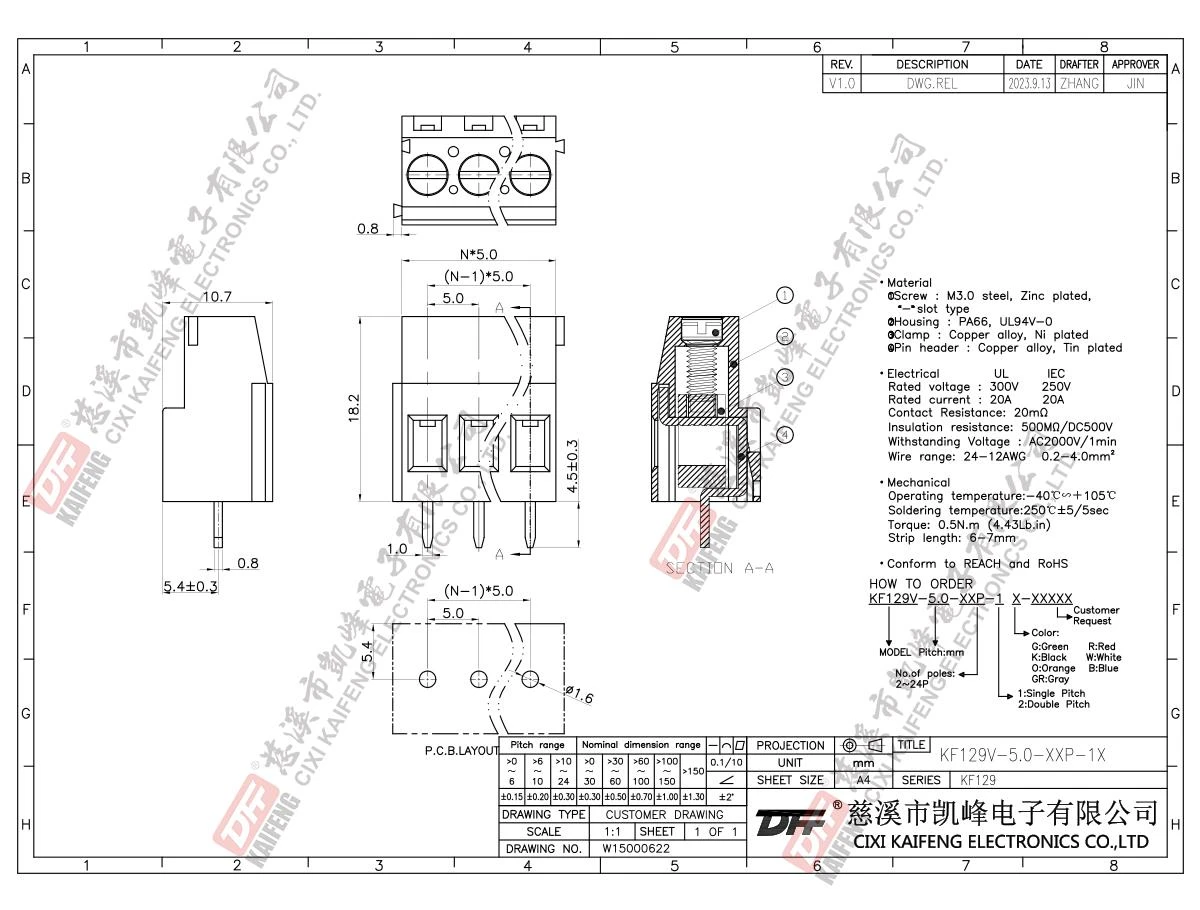

Product Drawing
Kaifeng Electron
Product packaging
  • Weight
    Xg
  • SPQ
    12pcs
  • Packaging
    Ziploc
  • MOQ
    12pcs
  • Packaging
    Box45cm*28cm*27cm
