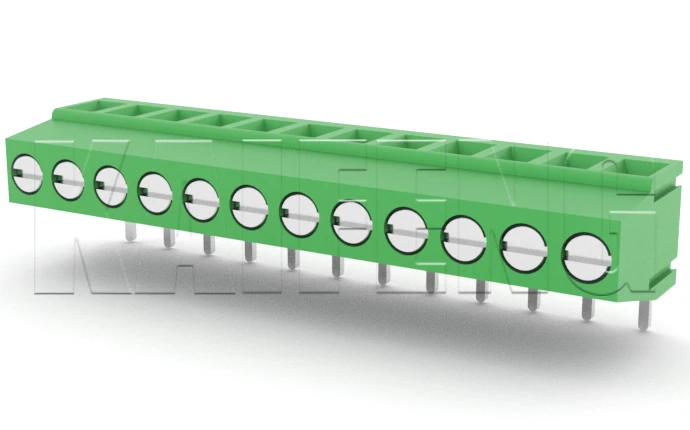

PCB Terminal Block KF128R(H:13.9)-5.08mm
PCB Terminal Block MATERIAL:Screws:M2.5,Steel Zinc platedcontact:Brass, Tin platedPin header:Brass, Tin platedHousing:PA66,UL94V-0·ELECTRICALRated voltage:300VRated current:10AContact resistance:20mΩInsulation resistance:5000MΩ/1000VWithstanding voltage :AC1500V/1MinWire range:24-12AWG2.5mm²·MechanicalTemp.rang:-40℃~+105℃Max.soldering:+250℃,5 secondsTorque:0.4Nm(3.6lb.in)Strip length:6-7mm
Color
  • Kaifeng Electron
Line count
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P
  • 13P
  • 14P
  • 15P
  • 16P
  • 17P
  • 18P
  • 19P
  • 20P
  • 21P
  • 22P
  • 23P
  • 24P
Product Drawing
