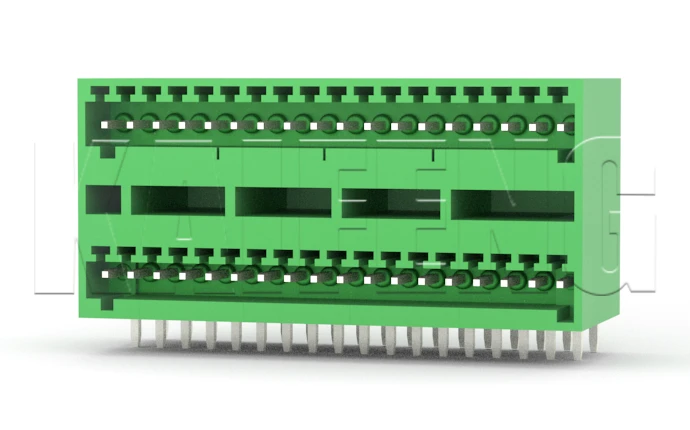

Pluggable Terminal Block KF1025R-3.81mm
Pluggable Terminal Block MATERIAL:contact: -Pin header: Brass, Tin platedHousing: PA66,UL94V-0ElectricalULIECRated voltage300V 250V Rated current8A7AContact resistance20mΩInsulation resistance500MΩ/DC500VWithstanding voltage AC1500V/1minWire range-MechanicalTemp.rang-40℃~+105℃ Max.soldering+250℃, 5secTorque-Strip length- Make an appointment now
Color
  • Kaifeng Electron
Line count
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P
  • 13P
  • 14P
  • 15P
  • 16P
  • 17P
  • 18P
  • 19P
  • 20P
  • 21P
  • 22P
  • 23P
  • 24P
Product Drawing
Kaifeng Electron
Material and Plating
  • Screws
    -
  • Contact
    -
  • Pin header
    Brass, Tin plated
  • Housing
    PA66,UL94V-0
Mechanical behavior
  • Temp.rang
    LOW-40℃ 丨TOP+105℃
  • Max.soldering
    +250℃,5sec
  • Torque
    -
  • Strip length
    -
Product packaging
  • Weight
    19.72g
  • SPQ
    15pcs
  • Packaging
    Ziploc
  • MOQ
    75pcs
  • Packaging
    Box42cm*28cm*27cm
