Pluggable Terminal Block KF12EKR-3.50mm
Pluggable Terminal Block MATERIAL:M2.5,Steel Zinc platedClip:Phosphor bronze,Tin Platedcontact:Brass,Tin PlatedHousing:PA66,UL94V-0ElectricalULIECRated voltage300V250VRated current8A7AContact resistance20mΩInsulation resistance500MΩ/DC500VWithstanding voltage AC1500V/1minWire range26-28AWG0.5-1.5mm²MechanicalTemp.rang-40℃~+105℃Max.soldering+250℃,5secTorque0.2N.m2.4kgf.cmStrip length6-7mm
Color
  • Kaifeng Electron
Line count
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P
  • 13P
  • 14P
  • 15P
  • 16P
  • 17P
  • 18P
  • 19P
  • 20P
  • 21P
  • 22P
  • 23P
  • 24P

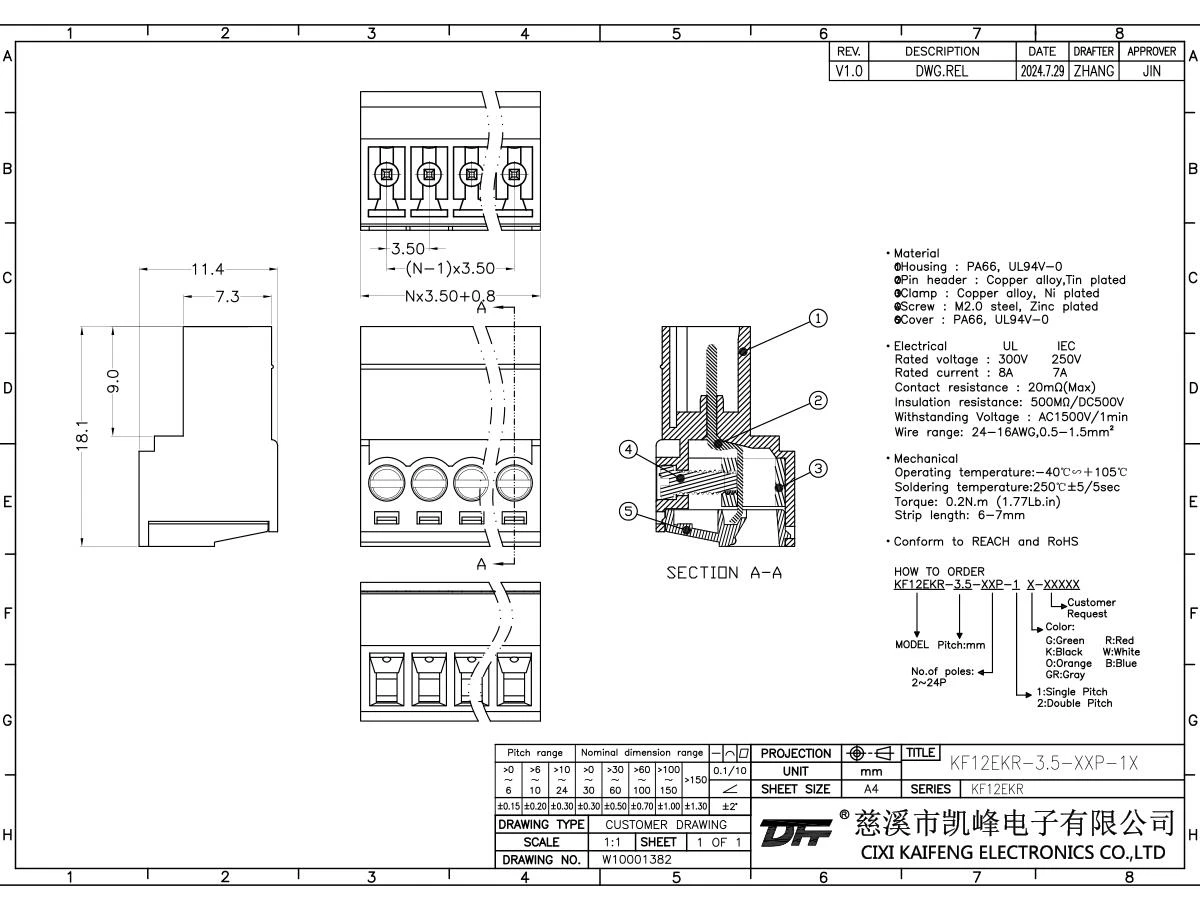

Product Drawing
Kaifeng Electron
Material and Plating
  • Screws
    M2.0,Steel Zinc plated
  • Clip
    Phosphor bronze,Tin Plated
  • Contact
    Brass, Tin plated
  • Housing
    PA66,UL94V-0
Mechanical behavior
  • Temp.rang
    LOW-40℃ 丨TOP+105℃
  • Max.soldering
    +250℃,5sec
  • Torque
    0.2N.m 2.4kgf.cm
  • Strip length
    6-7mm
Product packaging
  • Weight
    xg
  • SPQ
    12pcs
  • Packaging
    Bagged
  • MOQ
    12pcs
  • Packaging
    Box45cm*28cm*27cm
