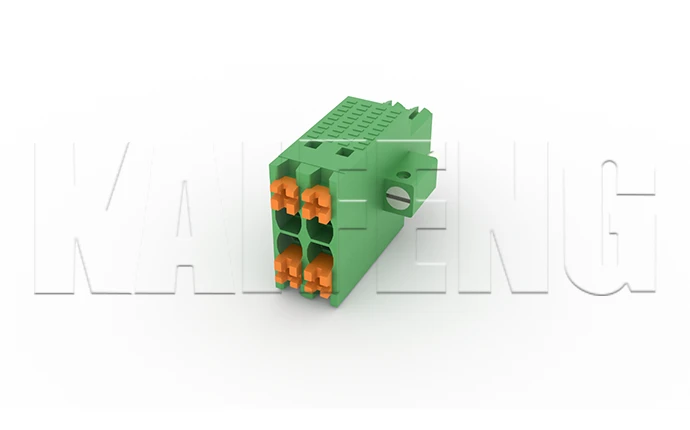

Pluggable Terminal Block KF12EDHM-3.50mm

Pluggable Terminal Block MATERIAL：PA66，UL94V-0Cover：PA66，UL94V-0Clip：Phosphor bronzeButton：PA66，UL94V-0Reed：Stainless steelScrews：M2.0 ，SteelElectricalULIECRated voltage300V 320V Rated current10A13.4AContact resistance20mΩ（Max）Insulation resistance500MΩ/DC500VWithstanding voltage AC1600V/1minWire range28-16AWG 0.2-1.5mm²MechanicalTemp.rang-4

Color

Line count

Consult more

Product Parameters

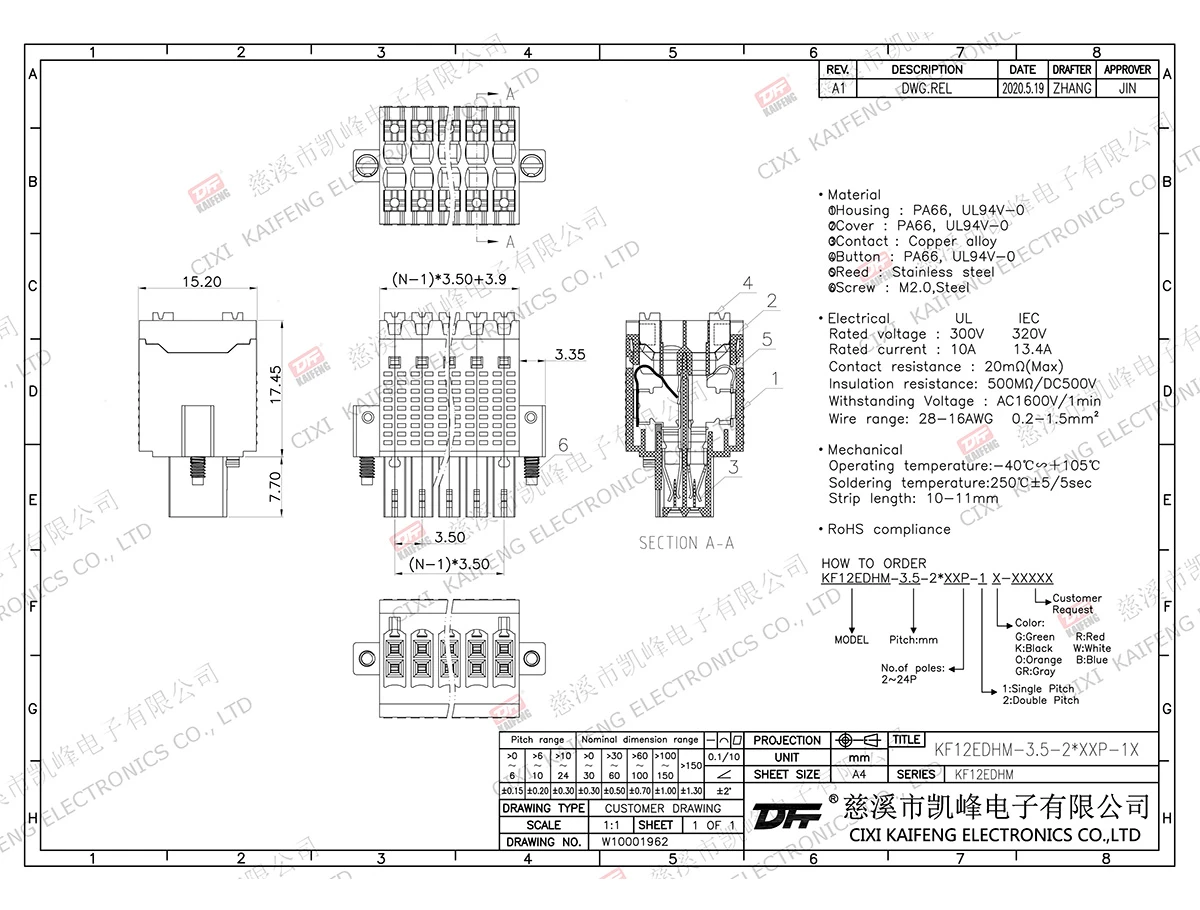

Product Drawing
