Dip Switch 9KF002S-60P
Material:SPECIFICATIONMaterial QualityPlasticLCP White UL94V-0PINPhosphor bronze (t=0.20) ElectroplateGold plating of welding area : ≥0.25umGold plating of welding area : ≥0.02
Color
  • Kaifeng Electron
Line count
  • 60P

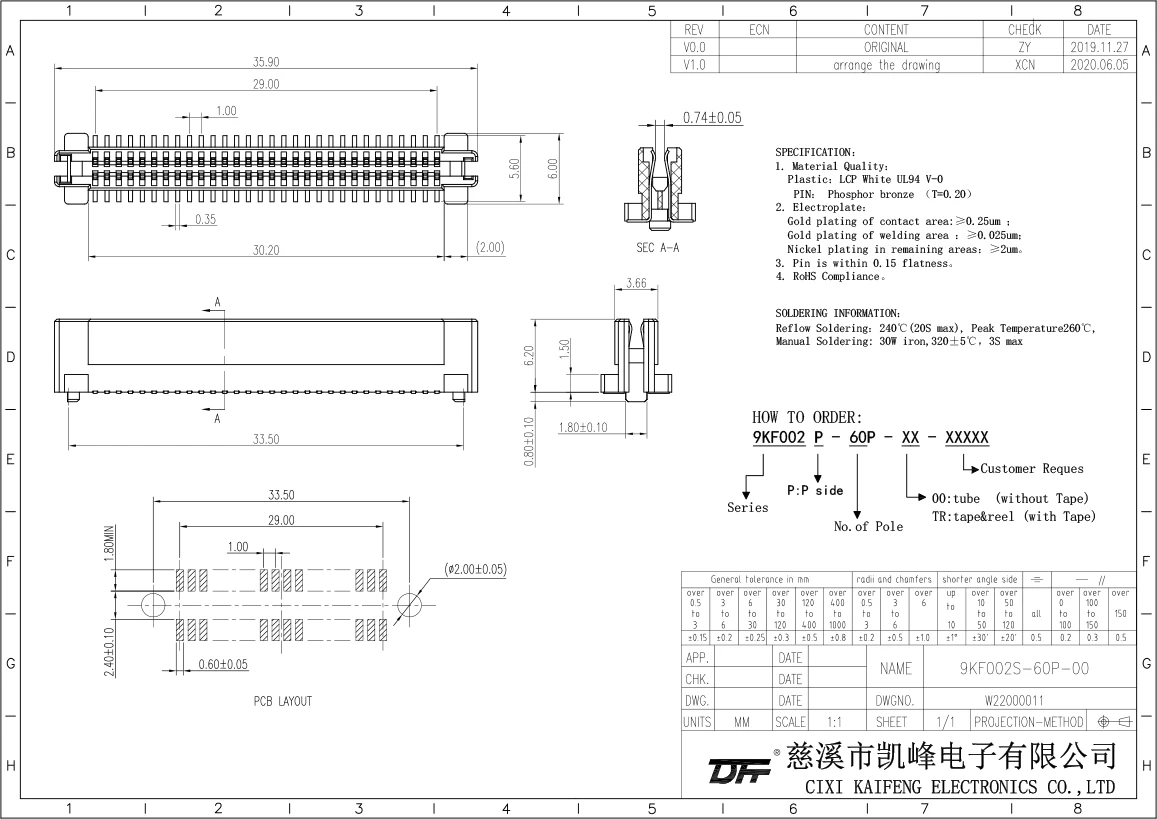

Product Drawing
Kaifeng Electron
Material
  • Plastic
    LCP White UL94V-0
  • PIN
    Phosphor bronze(t=0.20)
Electroplate
  • Gold plating of welding area : ≥0.25um
    -
  • Gold plating of welding area : ≥0.025um
    -
  • Nickel plating in remaining areas : ≥2um
    -
Soldering Infformation
  • Reflow Soldering:
    240℃(20S max),peak temperature260℃
  • Manual Soldering
    30Wiron,320±5℃,3S max
Pin is within 0.15 flatness
  • RoHS Compl iance
    -
