Dip Switch 6KF001A-3S16R5-0
Rotary Switch Material:Rated currentSwitching rating:25mA,24VDC Non-switching rating:100mA,50VDC Contact resistanceInitial:50mΩ maxAfter Life Test:100mΩ maxInsulation resistance :100mΩ min/250 VDCWithstanding voltage :250VAC for 1 minuteOperation Force :500gf.cm maxMechanical Life :min 10000 stepsOperation Temperature :-4
Color
  • Kaifeng Electron
Line count
  • 16P

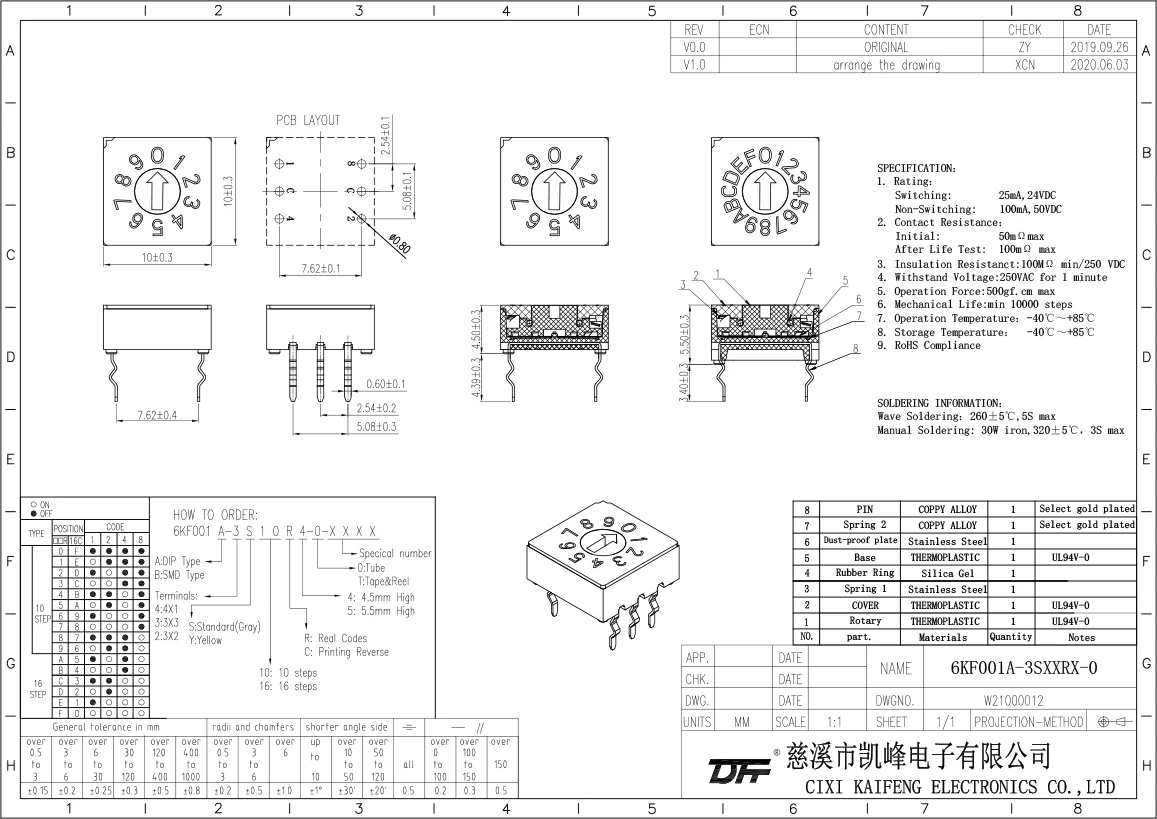

Product Drawing
Kaifeng Electron
Material
  • PIN
    Select gold plated
  • Spring
    Select gold plated
  • Base
    UL94V-0
  • Cover
    UL94V-0
  • Rotary
    UL94V-0
Rating
  • Switching
    25mA,24VDC
  • Non-Switching
    100mA,50VDC
  • Contact resistance
    -
  • Initial
    50mΩmax
  • After Life Test
    100mΩ
  • Insulation resistance
    100MΩ min/250 VDC
  • Withstanding voltage
    250VAC for 1 minute
  • Operation Force
    500gf.cm max
  • Mechanical Life
    min 10000 steps
  • Operation Temperature
    -40℃~+85℃
  • Storage Temperature
    -40℃~+85℃
  • RoHS Compl iance
    -
Soldering Infformation
  • Reflow Soldering
    240℃ (20S max),peak temperature260℃
  • Manual Soldering
    30Wiron,320±5℃,3S max
