PCB Terminal Block KF142R-5.08mm
Material:①Button:PA66,UL94V-0②Cover:PA66,UL94V-0③Button:PA66,UL94V-0④Reed:Stainless steel⑤Pin header:Brass,Tin platedElectricalULIECRated voltage300V 250V Rated current10A15AContact resistance20mΩInsulation resistance500MΩ/DC500VWithstanding voltage AC2000V/1minWire range22-14AWG 1.5mm²MechanlicalTemp.rang-40℃~+105℃ Max.soldering+250℃,5sec
Color
  • Kaifeng Electron
  • Kaifeng Electron
Line count
  • 01P
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P
  • 13P
  • 14P
  • 15P
  • 16P
  • 17P
  • 18P
  • 19P
  • 20P
  • 21P
  • 22P
  • 23P
  • 24P

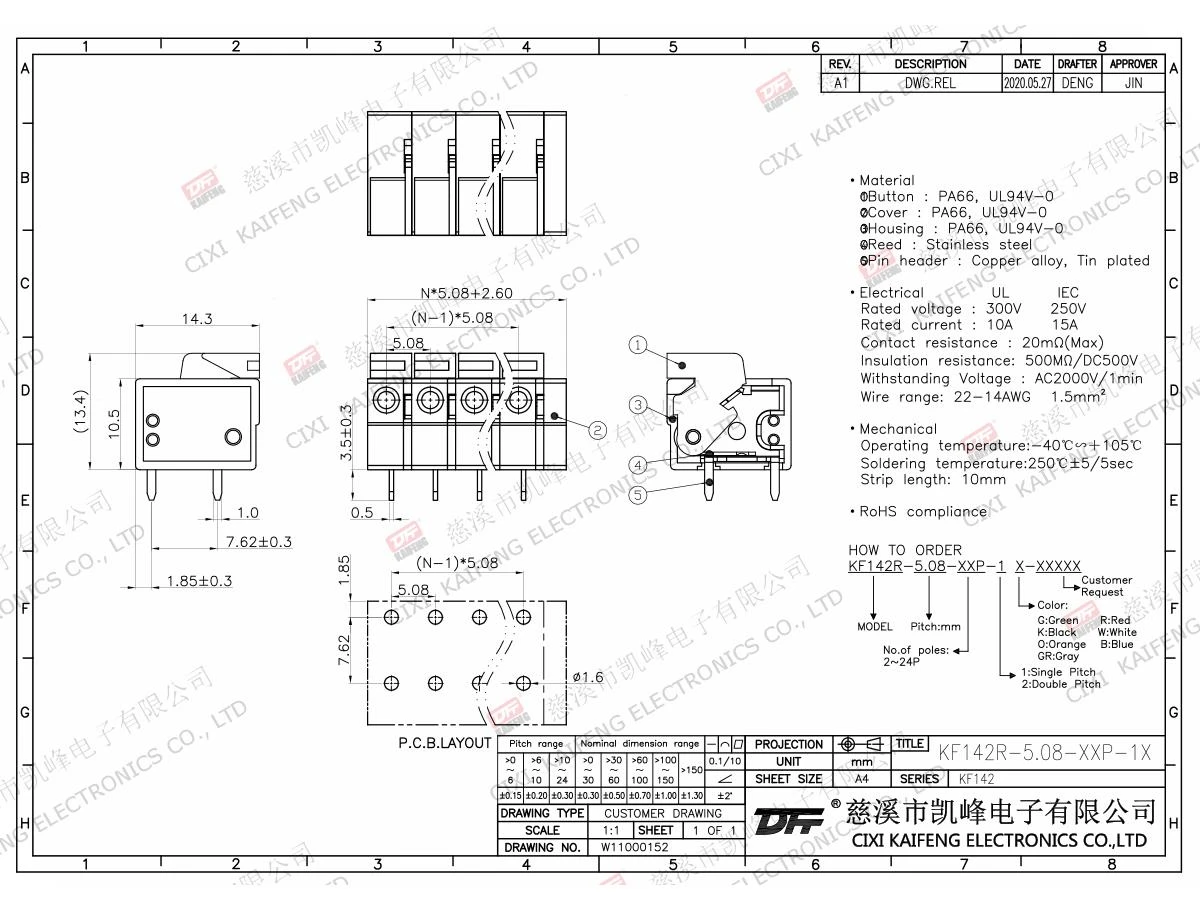

Product Drawing
Kaifeng Electron
Material
  • Button
    PA66,UL94V-0
  • Cover
    PA66,UL94V-0
  • Housing
    PA66,UL94V-0
  • Reed
    Stainless steel
  • Pin header
    Brass, tinned
Electrical
  • Rated voltage
    300V UL丨 250V lEC
  • Rated current
    10A UL丨 15A lEC
  • Contact resistance
    20mΩC
  • Insulation resistance
    500MΩ\DC500V
  • Withstanding voltage
    AC2000V\1Min
  • Wire range
    22-14AWG 1.5mm²
Mechanical
  • Temp Range
    LOW-40℃ 丨TOP+105℃
  • MAX Soldering
    +250℃,5sec
  • Strip length
    10mm
Packaging
  • Weight
    1.42 g
  • SPQ
    220pcs
  • Packaging
    Ziploc
  • MOQ
    1760pcs
  • Packaging
    Box42*28*28cm
