Kaifeng Electron
Kaifeng Electron
MCS Connector KF450 pin connector with holder
Mcs Connector
Color
  • Kaifeng Electron
Line count
  • 01P
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P
  • 13P
  • 14P
  • 15P
  • 16P
  • 17P
  • 18P
  • 19P
  • 20P
  • 21P
  • 22P
  • 23P
  • 24P

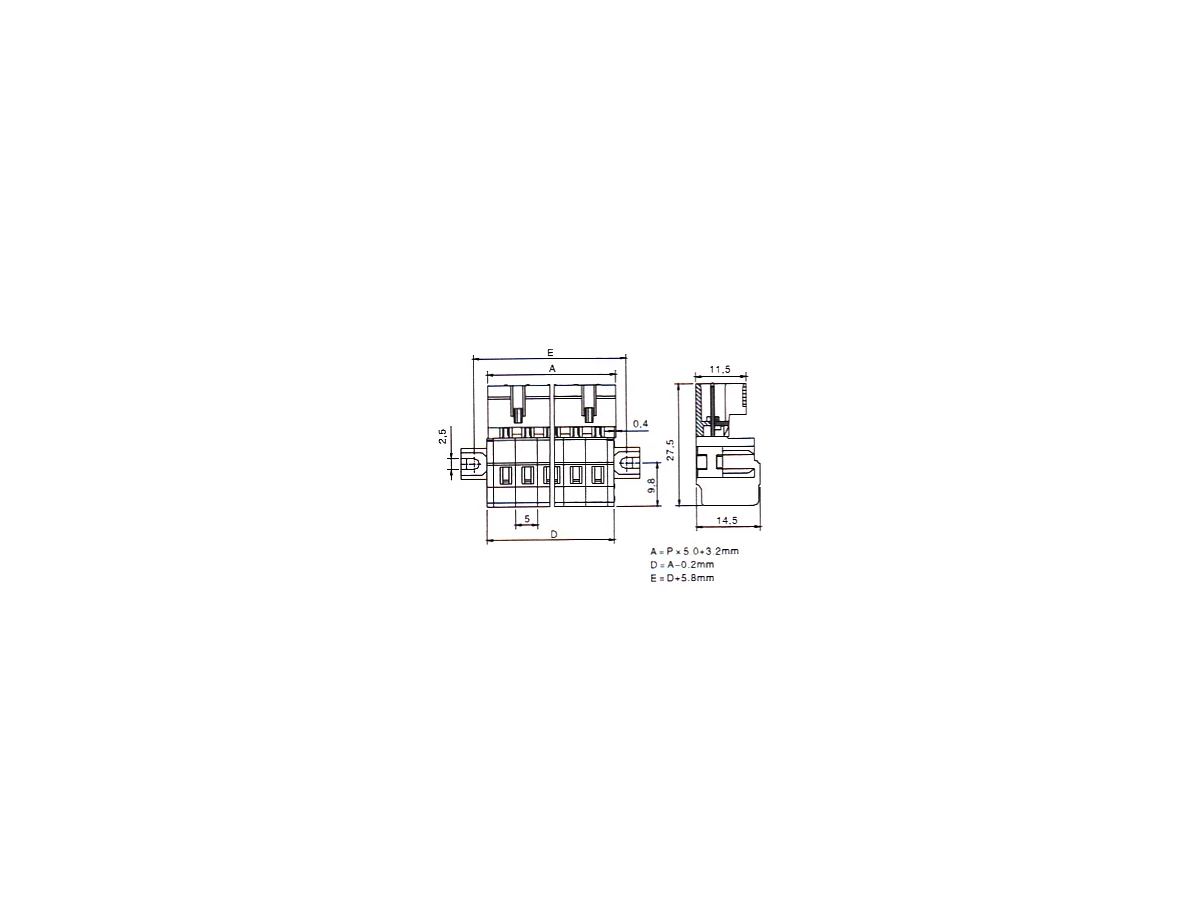

Product Drawing
Kaifeng Electron
Electrical
  • Rated voltage
    300V UL丨 320V lEC
  • Rated current
    15A UL丨 12A lEC
  • Contact resistance
    20mΩ
  • Insulation resistance
    500MΩ/DC500V
  • Withstanding voltage
    AC1500V/1Min
  • Wire range
    28-12AWV/0.2-2.5mm²
Mechanical
  • Temp.rang
    LOW-30℃ 丨TOP+105℃
  • Max.soldering
    +250℃,5sec
Packaging
  • Net Weight
    xg
  • SPQ
    12pcs
  • Packaging
    Ziploc
  • MOQ
    12pcs
  • Packaging
    Box45cm*28cm*27cm
