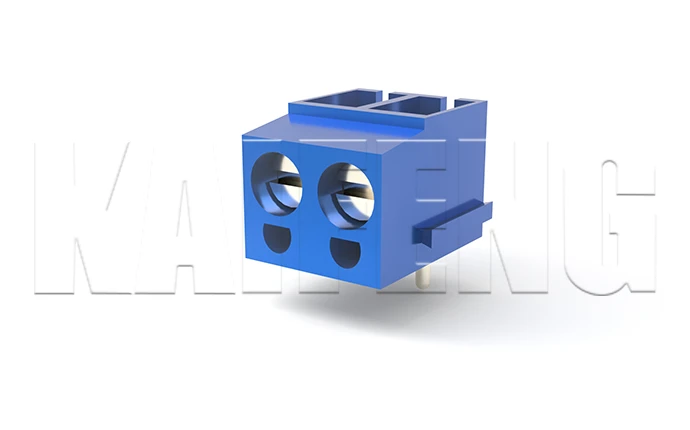

PCB Terminal Block KF300R-5.00mm
Screws:M3.0,Steel Zinc plated,"-"slot type 丨 Select:- 丨 Pin header:Copper alloy,Tin plated 丨 Housing:PA66 UL94V-0 丨 Electrical:ULIEC 丨 Rated voltage:250V-300V 丨 Rated current:12A-24A 丨 Contact resistance:20mΩ 丨 Insulation resistance:500MΩ/DC500V 丨 Withstanding voltage :AC1250V/1min 丨 Wire range:22-14AWG 1.0-2.5mm² 丨 MechanlicalTemp.rang:-40℃~+105℃ 丨 Max.soldering:+250℃,5sec
Color
  • Kaifeng Electron
Line count
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P
  • 13P
  • 14P
  • 15P
  • 16P
  • 17P
  • 18P
  • 19P
  • 20P
  • 21P
  • 22P
  • 23P
  • 24P

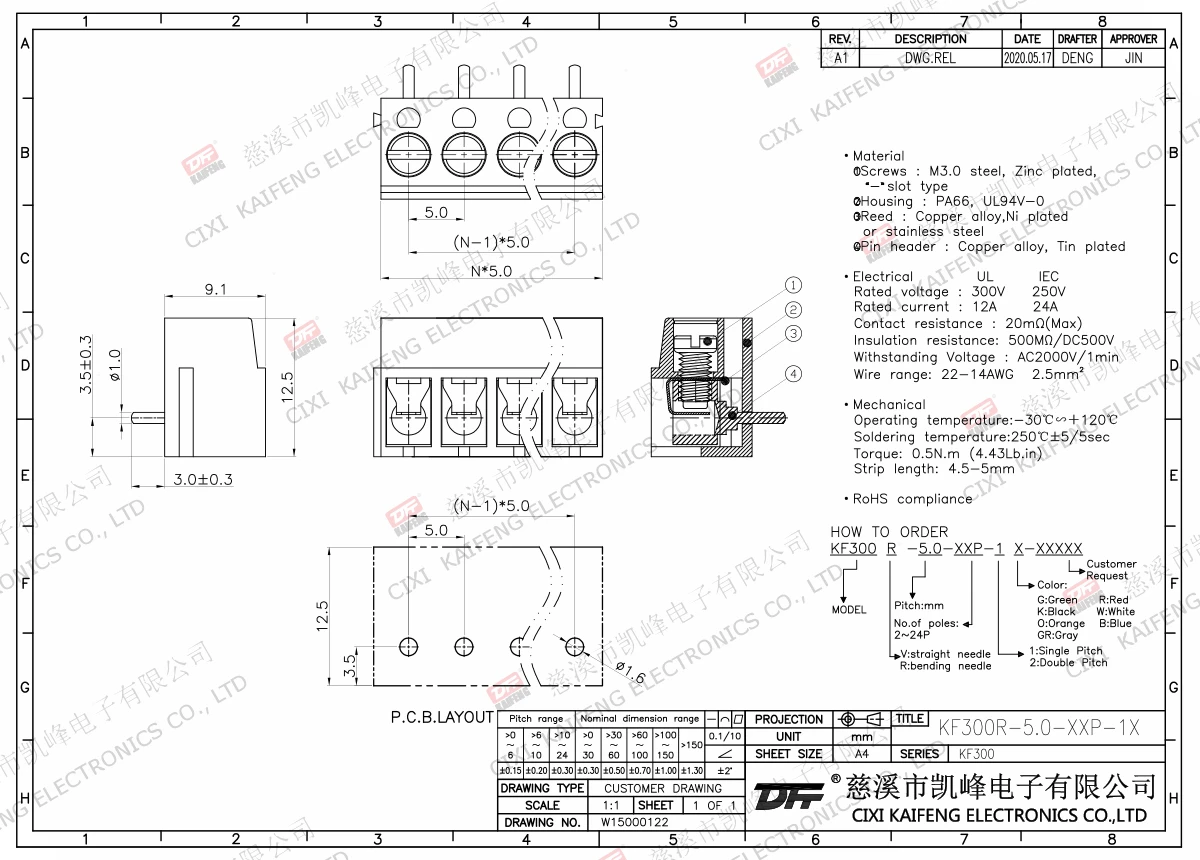

Product Drawing
Kaifeng Electron
Material
  • Screws
    M3.0 Steel Zinc plated-slot type
  • Housing
    PA66, UL94V- 0
  • Reed
    Phosphor bronze Ni plated or stainless steel
  • Pin header
    Brass, Tin plated
Electrical
  • Rated voltage
    300V UL丨 250V lEC
  • Rated current
    12A UL丨 24A lEC
  • Contact resistance
    20mΩ(Max)
  • Insulation resistance
    500MΩ\DC500V
  • Withstanding voltage
    AC2000V\1Min
  • Wire range
    22-14AWG 2.5mm²
Mechanical
  • Temp Range
    LOW-30℃ 丨TOP+120℃
  • MAX Soldering
    +250℃,5sec
  • Torque
    0.5N.m 4.4Lb.in
  • Strip length
    4.5-5mm
Packaging
  • Net weight
    xg
  • SPQ
    12pcs
  • Packing method
    Bagged
  • MOQ
    12pcs
  • Packing method
    Boxed45cm*28cm*27cm
