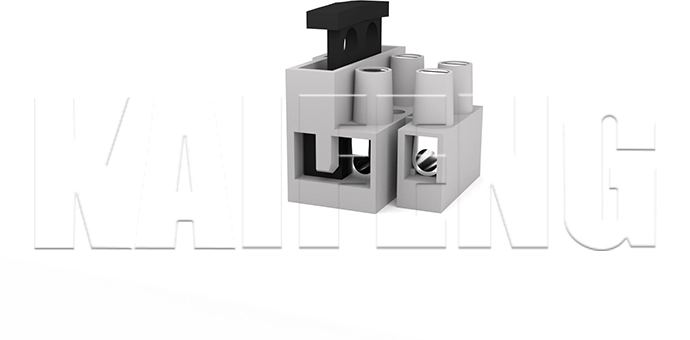

PCB Terminal Block KF100-10.00mm
PCB Terminal Block MATERIAL:Screws :M3.0, Steel Zinc plated Housing : PA66 UL94V-0 Contact material :
Color
  • Kaifeng Electron
Line count
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P

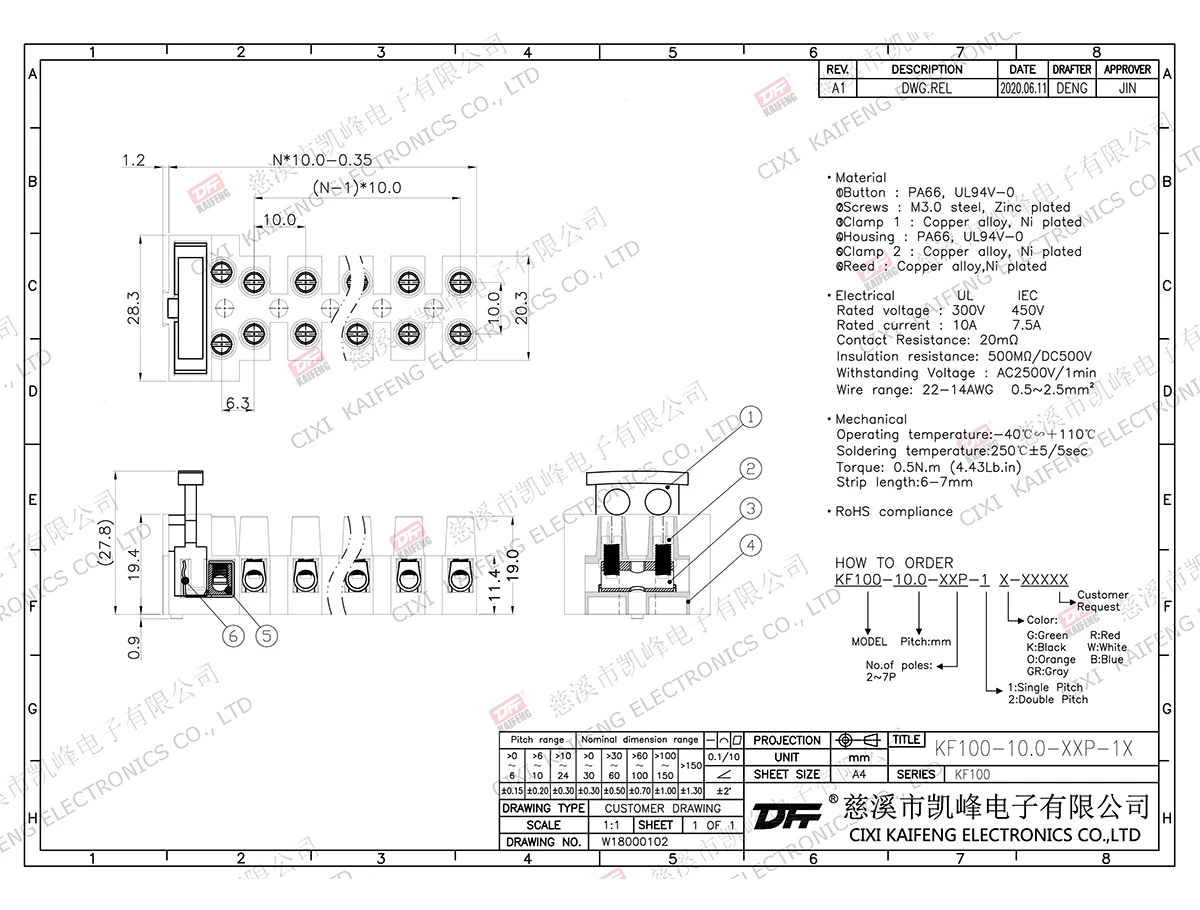

Product Drawing
Kaifeng Electron
Material and Plating
  • Screws
    M3.0, Steel Zinc plated
  • Housing
    PA66 UL94V-0
  • Contact material
    Brass, Tin plated
  • Pin header
    Brass, Tin plated
Electrical properties
  • Rated voltage
    450V UL丨 - lEC
  • Rated current
    7.5A UL丨 - lEC
  • Contact resistance
    20mΩ(Max)
  • Insulation resistance
    500MΩ\DC500V
  • Withstanding voltage
    AC2500V\1Min
  • Wire range
    22-14AWG 0.5-2.5mm²
Mechanical behavior
  • Temp.rang
    LOW-40℃ 丨TOP+110℃
  • Max.soldering
    +250℃,5sec
  • Torque
    0.5N.m 4.43Lb.in
  • Strip length
    6-7mm
Product packaging
  • Weight
    Xg
  • SPQ
    12pcs
  • Packaging
    Ziploc
  • MOQ
    12pcs
  • Packaging
    Box45cm*28cm*27cm
