PCB Terminal Block KF10HWP-10.00mm(Copper block)
PCB Terminal Block MATERIAL:①Screws:M3.0,Steel Zinc plated②block:Brass, Tin plated③Reed:Stainless steel④Housing:Nylon PA66(UL94V-2)ELECTRICALULIECRated voltage300V 400V Rated current20A41AELECTRICAL18-12AWG 1.0-6.0mm²MechanicalTemp.rang-40℃~+110℃ Max.soldering+250℃ 5 secondsProduct numberKF10HWP-XPBasehighH XPNo.
Color
  • Kaifeng Electron
Line count
  • 01P
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P

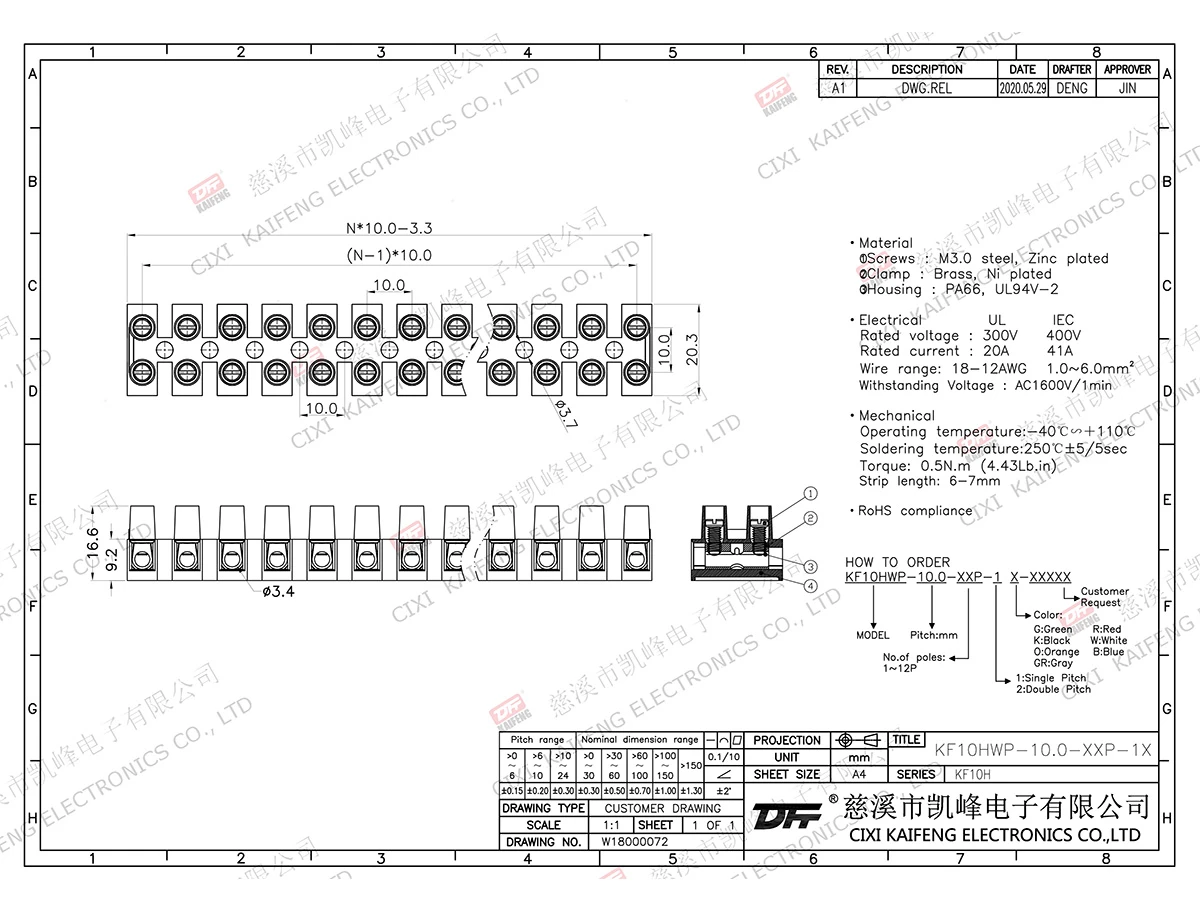

Product Drawing
Kaifeng Electron
Material and Plating
  • Screws
    M3.0,Steel Zinc plated
  • Square
    Brass, Tin plated
  • Reed
    Stainless steel
  • Housing
    Nylon PA66(UL94V-2)
Electrical properties
  • Rated voltage
    300V UL丨  400V  lEC
  • Rated current
    20A UL丨 41A  lEC
  • ELECTRICAL
    18-12AWG UL丨  1.0-6.0mm²  lEC
Mechanical behavior
  • Temp.rang
    LOW-40℃ 丨TOP+110℃
  • Max.soldering
    +250℃,5sec
  • Product number
    KF10HWP-XP
  • Basehigh
    H
  • XP
    No.of pole 1…12:1 pole…12pole
  • WP
    Protector
  • Torque
    0.5N.m 4.43Lb.in
Product packaging
  • Weight
    Xg
  • SPQ
    12pcs
  • Packaging
    Ziploc
  • MOQ
    12pcs
  • Packaging
    Box45cm*28cm*27cm
