PCB Terminal Block KF14H-13.50mm(Copper block)
PCB Terminal Block MATERIAL:①Screws:M4.0,Steel Zinc plated②block:Brass, Tin plated③Housing:Nylon PA66(UL94V-2)ELECTRICALULIECRated voltage600V 750V Rated current50A76AELECTRICAL14-6AWG 16.0mm²MechanicalTemp.rang-40℃~+110℃ Max.soldering+250℃ 5 secondsProduct numberKF14H-XPBasehighH XPNo.of pole 1…12:
Color
  • Kaifeng Electron
Line count
  • 01P
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P

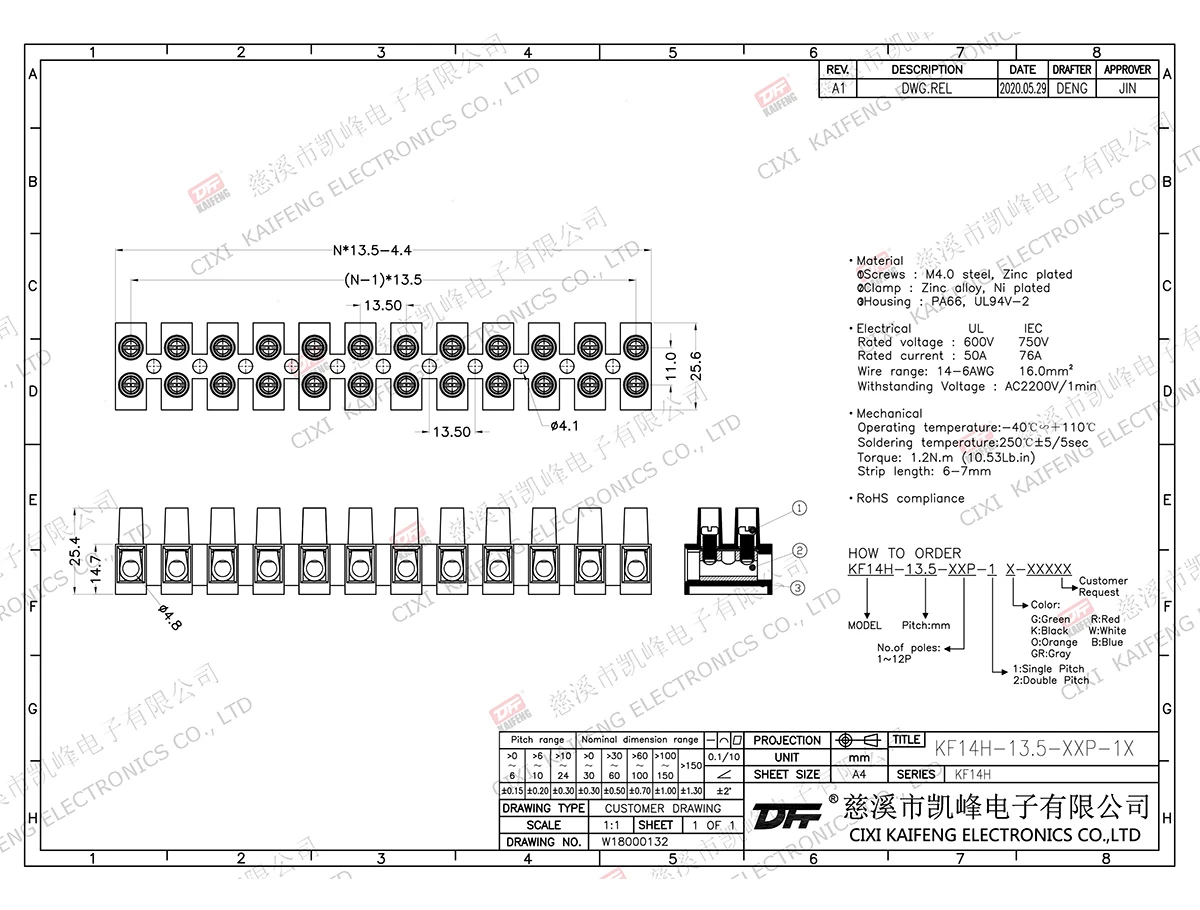

Product Drawing
Kaifeng Electron
Material and Plating
  • Screws
    M4.0,Steel Zinc plated
  • Housing
    Nylon PA66(UL94V-2)
  • Square
    Brass, Tin plated
Electrical properties
  • Rated voltage
    600V UL丨  750V  lEC
  • Rated current
    50A UL丨 76A  lEC
  • ELECTRICAL
    14-6AWG UL丨  16.0mm²  lEC
Mechanical behavior
  • Temp.rang
    LOW-40℃ 丨TOP+110℃
  • Max.soldering
    +250℃,5sec
  • Product number
    KF14H-XP
  • Basehigh
    H
  • XP
    No.of pole 1…12:1 pole…12pole
  • WP
    -
  • Torque
    1.2N.m 10.53Lb.in
Product packaging
  • Weight
    Xg
  • SPQ
    12pcs
  • Packaging
    Ziploc
  • MOQ
    12pcs
  • Packaging
    Box45cm*28cm*27cm
