PCB Terminal Block KF127DG-5.08mm

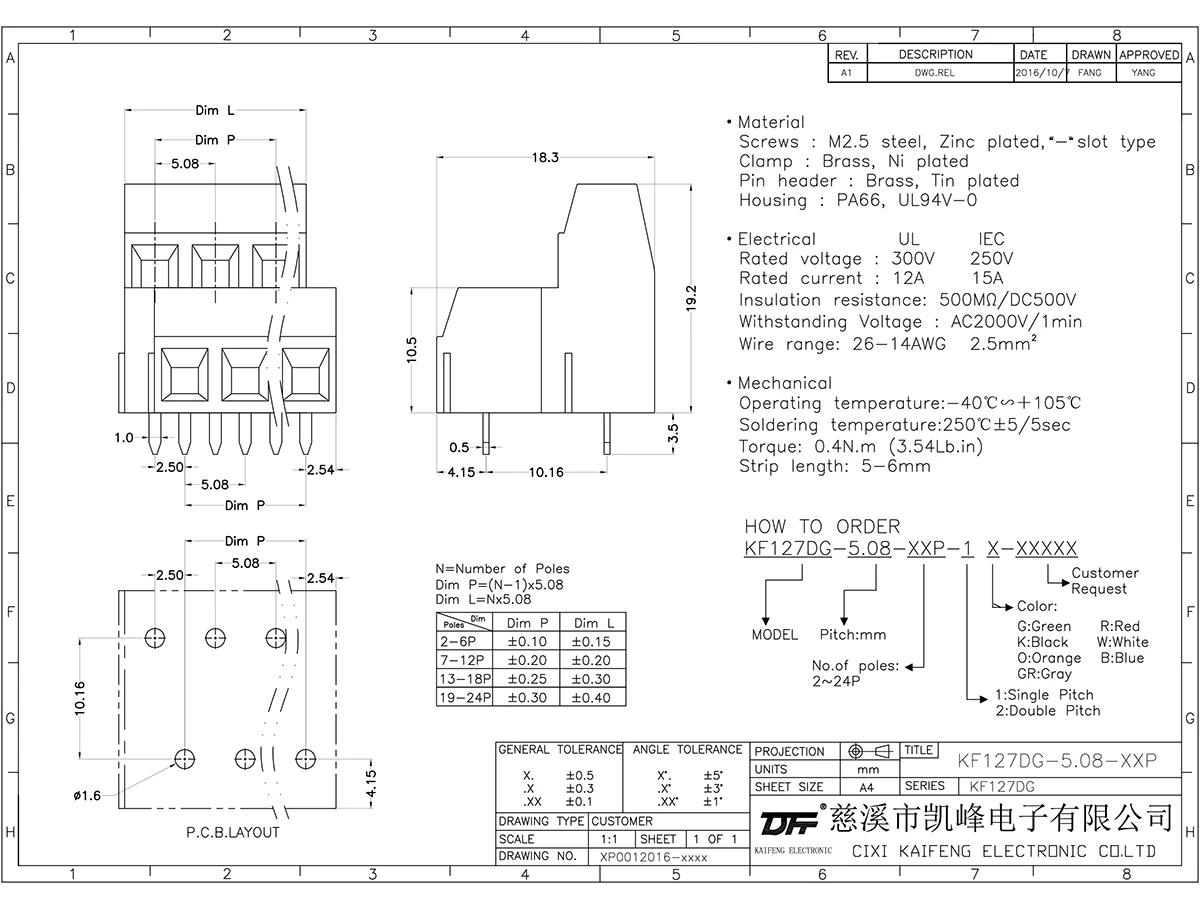

PCB Terminal Block MATERIAL：MATERIAL①Screws:M2.5Steel Zinc plated,"-"slot type②Housing:PA66,UL94V-0③square box：Brass, Tin plated④Pin header:Brass, Tin platedELECTRICALULIECRated voltage300V250VRated current12A15AContact resistance20mΩ(Max)Insulation resistance500MΩ\DC500VWithstanding voltage AC2000V\1MinWire range26-14AWG2.5mm²MechanicalTemp.rang-40℃～+105℃Max.soldering+250℃,5secTorque0.4N

Color
