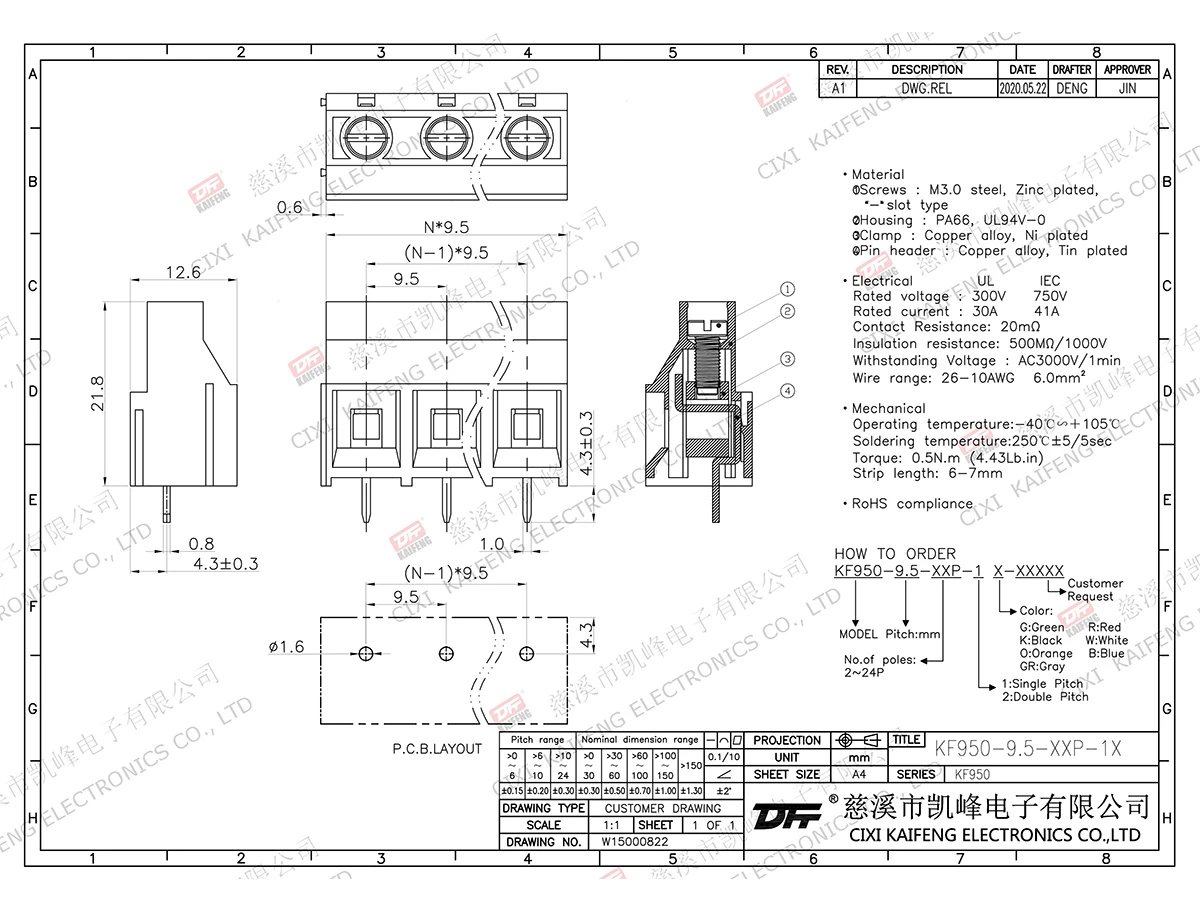

PCB Terminal Block KF950-9.50mm

PCB Terminal Block MATERIAL：Screws:steel,M3Tin platedblock：Brass, Tin platedTerminal:Brass, Tin platedHousing:PA66UL94V-0ELECTRICALRated voltage:300VRated current:30AContact resistance：20mΩDielectric strength:5000MΩ/1000VWithstanding voltage :AC1500V/1MinApplicable wire diameter:26～10AWG4mm2MechanicalService temperature:-40℃～＋105℃Max.soldering:+250℃for5SecTorque:0.5Nm(4.5lb.in)Strip length：6-7mm

Color
