PCB Terminal Block KF635-6.35mm
PCB Terminal Block MATERIAL:Screws:M3.0steel,Ni platedContact material:BrassNi platedPin header:Brass, Tin platedHousing:PA66UL94V-0·ELECTRICALRated voltage:300VRated current:30AContact resistance:20m?Insulation resistance:5000m?\1000VWithstanding voltage :AC1500V\1MinWire range:26-10AWG4.0mm2·MechanicalTemp.rang:-40℃+105℃Max.soldering:+250℃5S torque:0.5Nm(4.5lb.in)Strip length:6-7mm
Color
  • Kaifeng Electron
Line count
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P
  • 13P
  • 14P
  • 15P
  • 16P
  • 17P
  • 18P
  • 19P
  • 20P
  • 21P
  • 22P
  • 23P
  • 24P

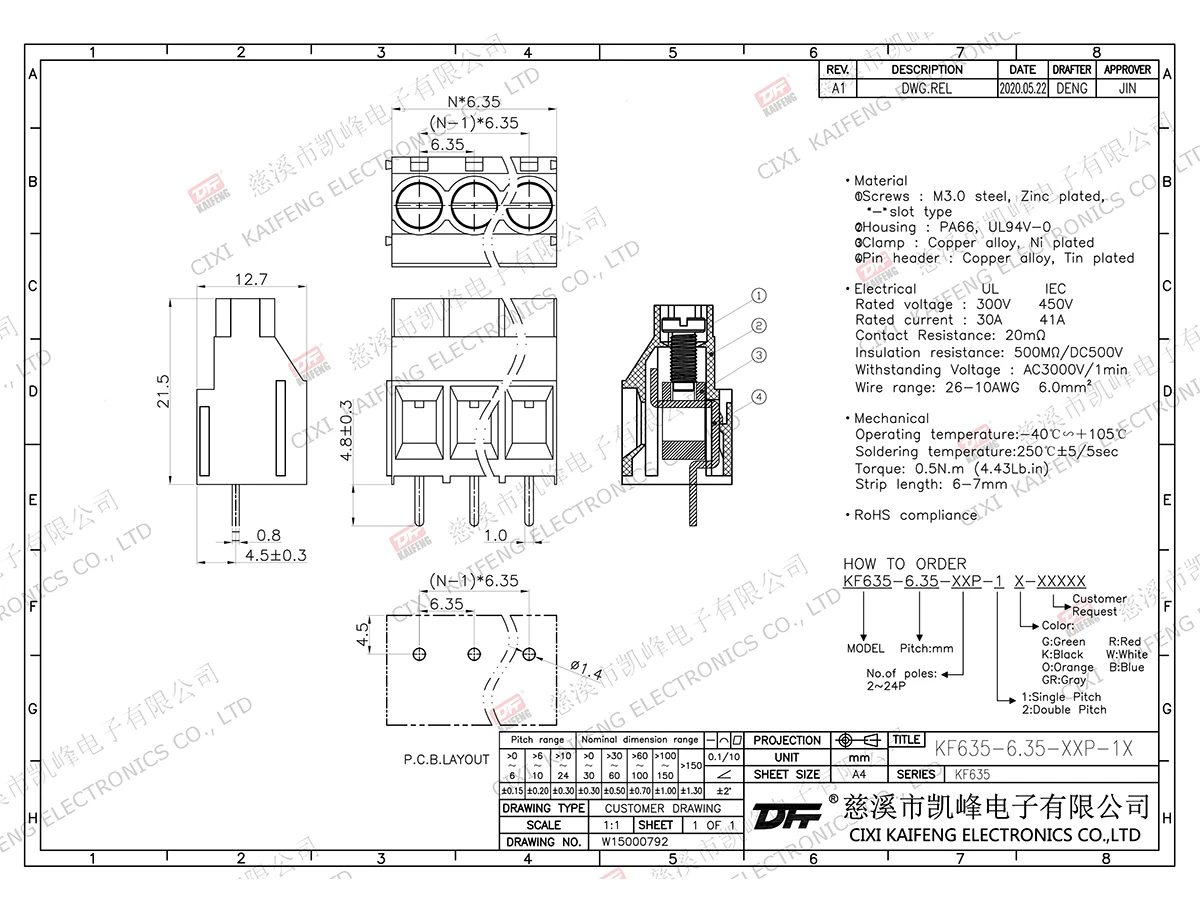

Product Drawing
Kaifeng Electron
Electrical properties
  • Rated voltage
    300V UL丨  450V  lEC
  • Rated current
    30A UL丨 41A  lEC
  • Contact resistance
    20mΩ(Max)
  • Insulation resistance
    500MΩ\DC500V
  • Withstanding voltage
    AC3000V\1Min
  • Wire range
    26-10AWG 6.0mm²
Mechanical behavior
  • Temp.rang
    LOW-40℃ 丨TOP+105℃
  • Max.soldering
    +250℃,5sec
  • Torque
    0.5N.m 4.4Lb.in
  • Strip length
    6-7mm
Product packaging
  • Weight
    Xg
  • SPQ
    12pcs
  • Packaging
    Ziploc
  • MOQ
    12pcs
  • Packaging
    Box45cm*28cm*27cm
