PCB Terminal Block KF136-10.16mm
PCB Terminal Block MATERIAL:Screws:steel,M4Tin platedblock:Brass, Tin platedTerminal:Brass, Tin platedHousing:PA66UL94V-0ELECTRICALRated voltage:600VRated current:50AContact resistance:20mΩDielectric strength:5000MΩ/1000VWithstanding voltage :AC3000V/1MinApplicable wire diameter:20~6AWG10mm2MechanicalService temperature:-40℃~+105℃Max.soldering:+250℃for5SecTorque:1.2Nm(10.6lb.in)Strip length:10mm
Color
  • Kaifeng Electron
Line count
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P
  • 13P
  • 14P
  • 15P
  • 16P
  • 17P
  • 18P
  • 19P
  • 20P
  • 21P
  • 22P
  • 23P
  • 24P

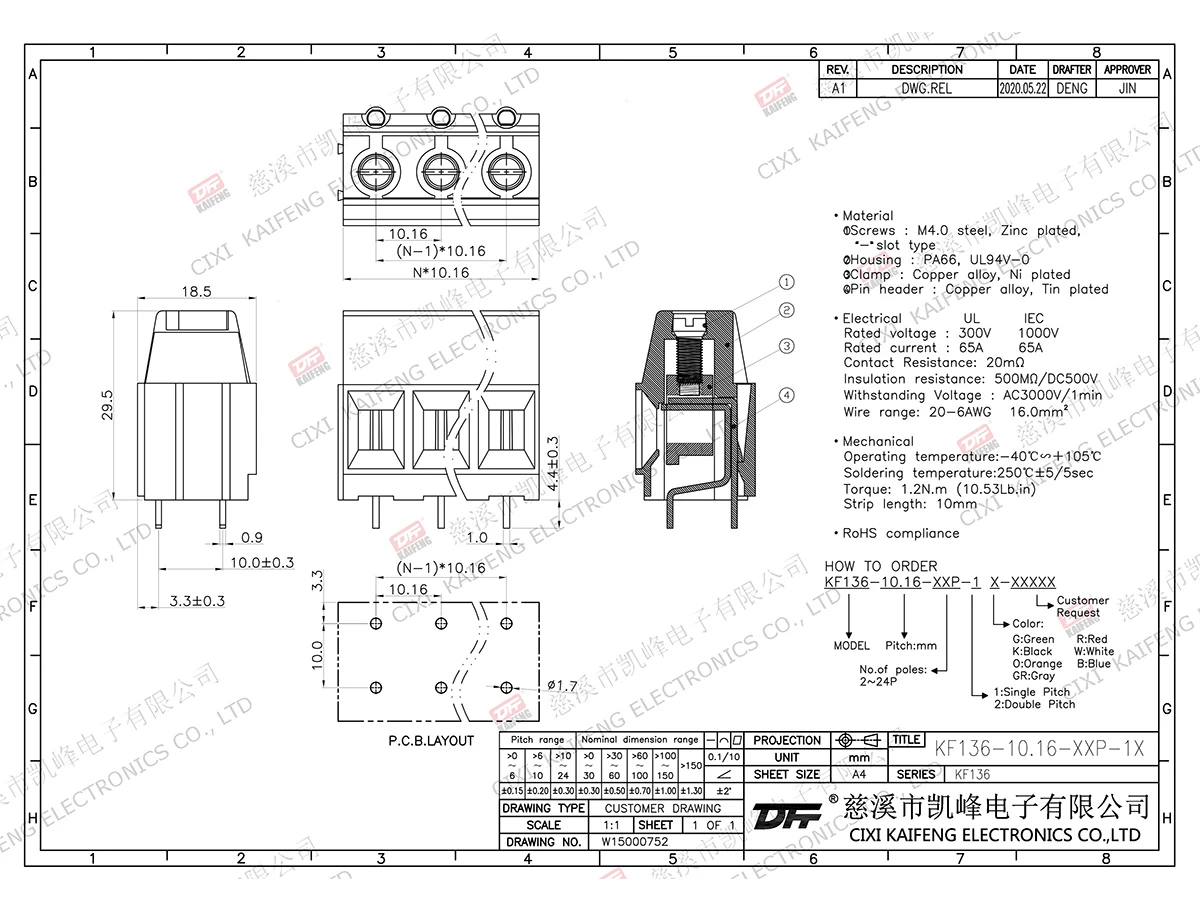

Product Drawing
Kaifeng Electron
Electrical properties
  • Rated voltage
    300V UL丨  1000  lEC
  • Rated current
    65A UL丨 65A  lEC
  • Contact resistance
    20mΩ(Max)
  • Insulation resistance
    500MΩ\DC500V
  • Withstanding voltage
    AC3000V\1Min
  • Wire range
    20-6AWG 16.0mm²
Mechanical behavior
  • Temp.rang
    LOW-40℃ 丨TOP+105℃
  • Max.soldering
    +250℃,5sec
  • Torque
    1.2N.m 10.5Lb.in
  • Strip length
    10mm
Product packaging
  • Weight
    Xg
  • SPQ
    12pcs
  • Packaging
    Ziploc
  • MOQ
    12pcs
  • Packaging
    Box45cm*28cm*27cm
