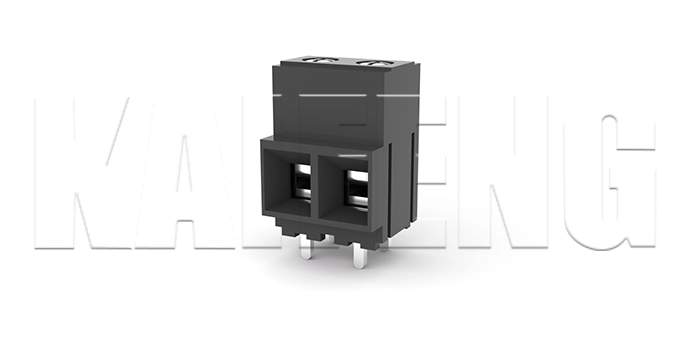

PCB Terminal Block KF135-10.16mm
PCB Terminal Block MATERIAL：MATERIAL(Material)Screws(Screw):M2.0Steel Zinc plated(Steel,ZincPlated)Housing(Housing):PA66,UL94V-0·ELECTRICAL(Electrical)Rated voltage(RatedVoltage):600VRated current(RatedCurrent):52AContact resistance(ContactResistance):20mΩInsulation resistance(InsulationResistance):5
Color
  • Kaifeng Electron
Line count
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P
  • 13P
  • 14P
  • 15P
  • 16P
  • 17P
  • 18P
  • 19P
  • 20P
  • 21P
  • 22P
  • 23P
  • 24P
Kaifeng Electron Kaifeng Electron
Consult more
Kaifeng Electron Kaifeng Electron
Product Parameters
Kaifeng Electron Kaifeng Electron

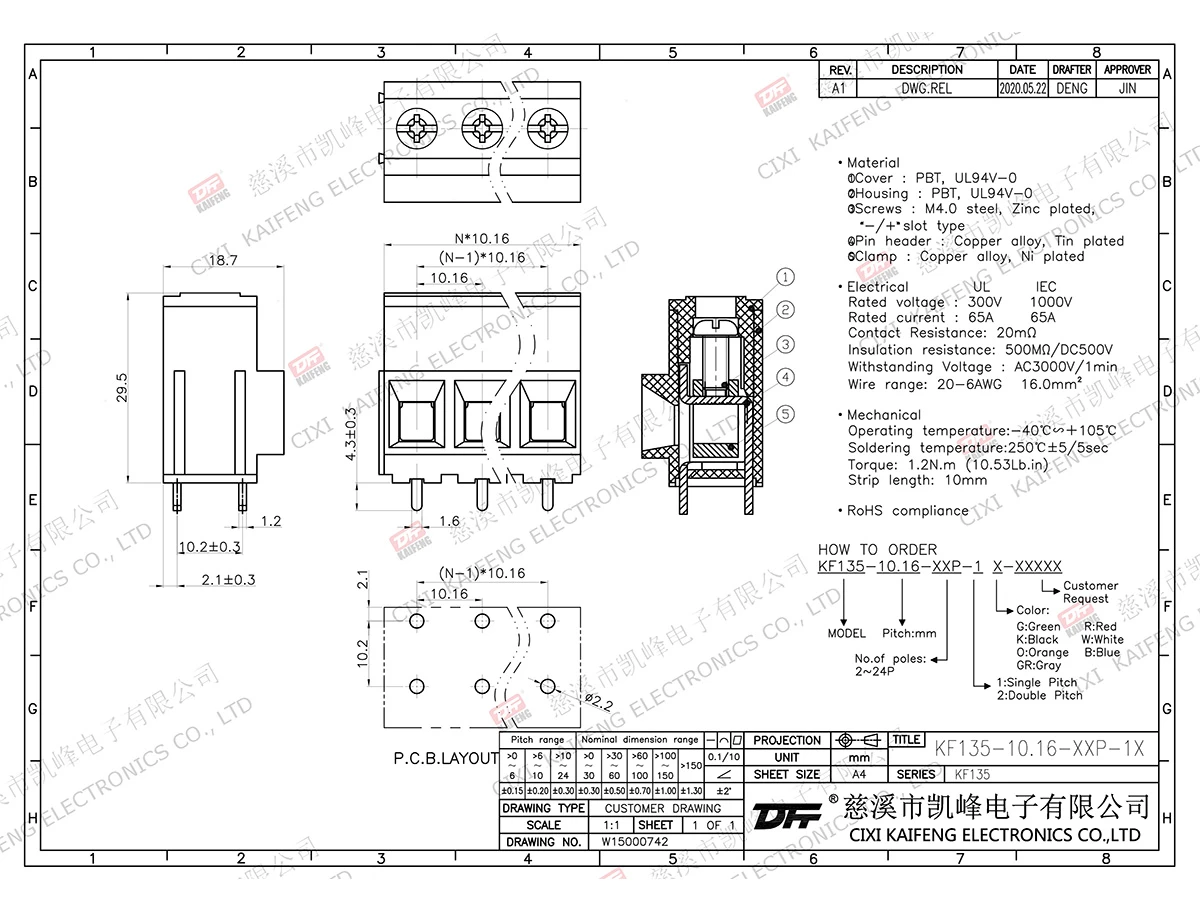

Product Drawing
Product Drawing Material and Plating Electrical properties Mechanical behavior Product packaging
Product Drawing
Kaifeng Electron
Material and Plating
  • Screws
    M4.0 Steel Zinc plated
  • Housing
    PA66, UL94V-0
Electrical properties
  • Rated voltage
    600V UL丨  -  lEC
  • Rated current
    65A UL丨 -  lEC
  • Contact resistance
    20mΩ(Max)
  • Insulation resistance
    500MΩ\DC500V
  • Withstanding voltage
    AC3000V\1Min
  • Wire range
    20-6AWG 16.0mm²
Mechanical behavior
  • Temp.rang
    LOW-40℃ 丨TOP+105℃
  • Max.soldering
    +250℃，5sec
  • Torque
    0.5N.m 4.4Lb.in
  • Strip length
    10.0mm
Product packaging
  • Weight
    Xg
  • SPQ
    12pcs
  • Packaging
    Ziploc
  • MOQ
    12pcs
  • Packaging
    Box45cm*28cm*27cm
