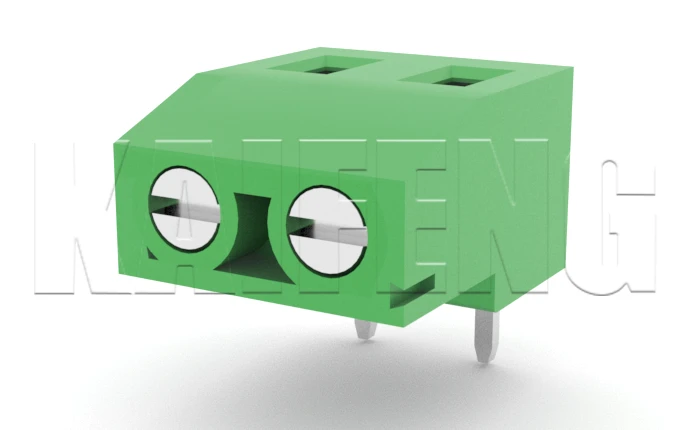

PCB Terminal Block KF129R-7.62mm

PCB Terminal Block MATERIAL：Screws:M3steel,Ni platedContact material:BrassPin header:Brass, Tin platedHousing:PA66UL94V-0·MechanicalTemp.rang:-40℃～+105℃Max.soldering:+250℃5S torque:0.4Nm(3.6lb.in)Strip length:6-7mm·ELECTRICALRated voltage:300VRated current:20AContact resistance:20m?Insulation resistance:5000M?\1000VWithstanding voltage :AC1500V\1MinWire range:24-12AWG2.5mm2

Color

Line count

Consult more

Product Parameters

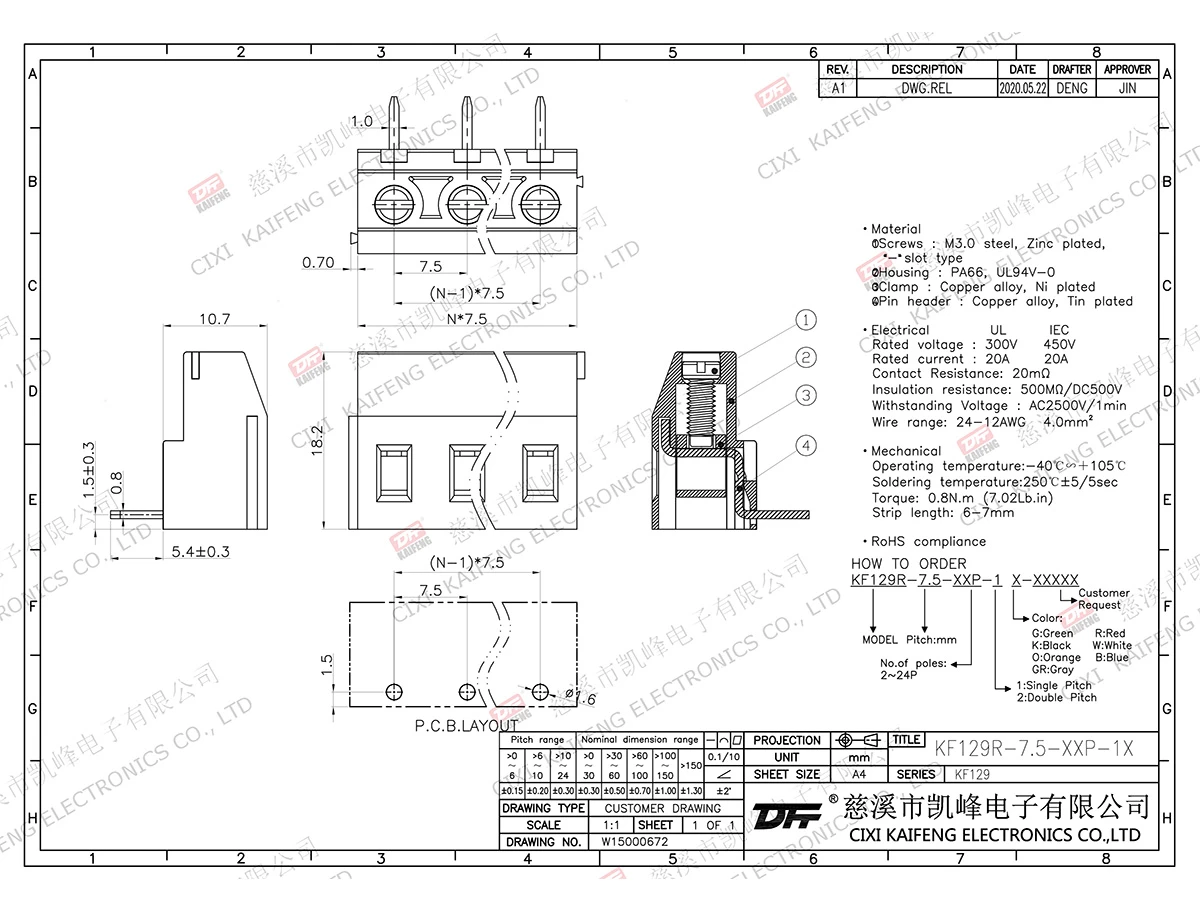

Product Drawing
