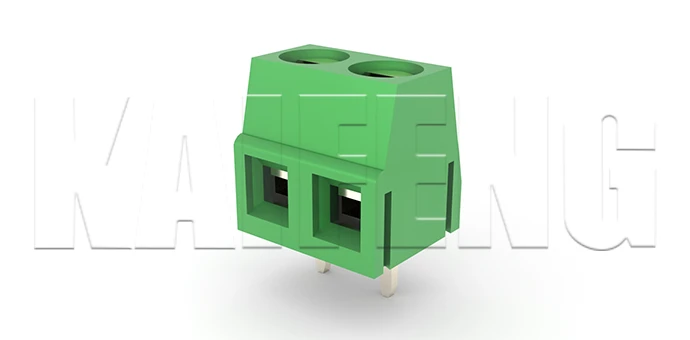

PCB Terminal Block KF127-5.00mm

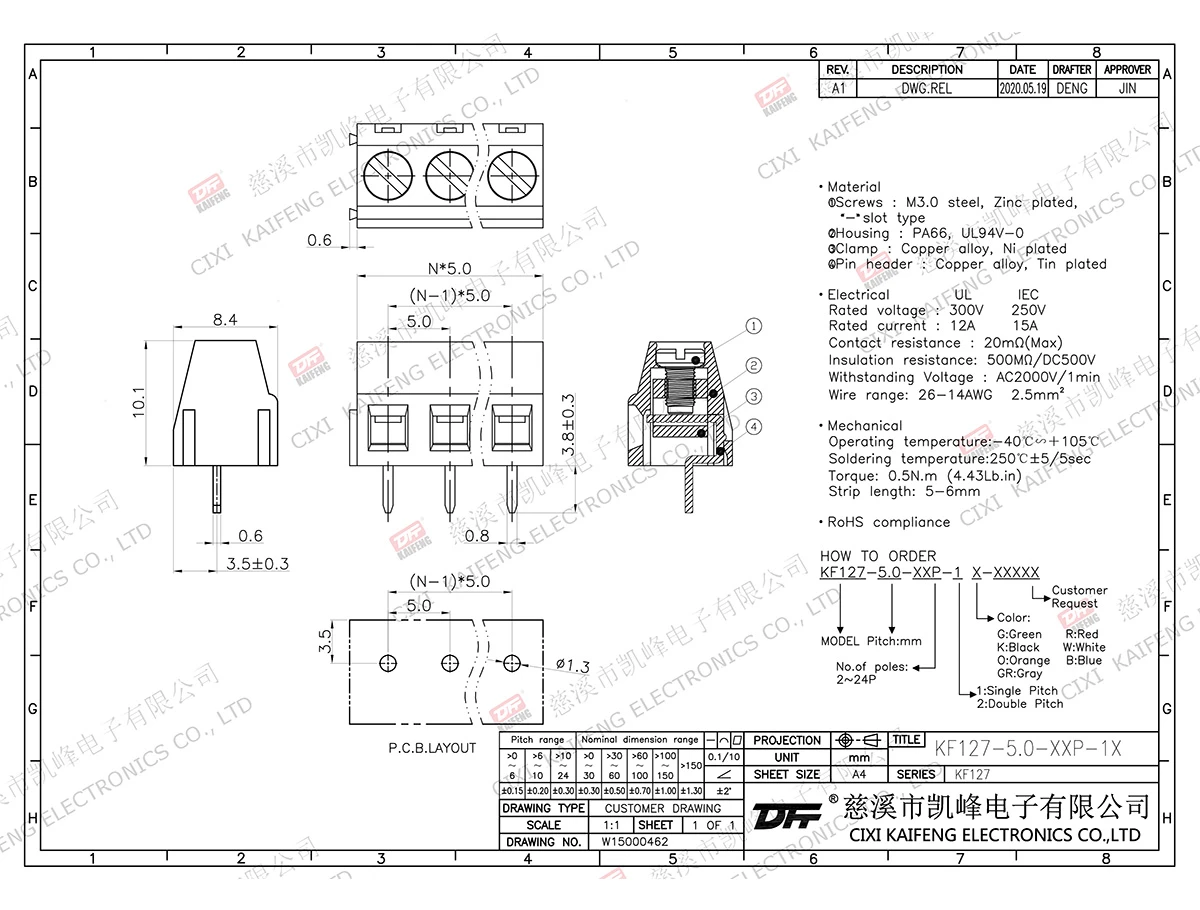

PCB Terminal Block MATERIAL：M2.5steel,Ni platedContact material:BrassNi platedPin header:Brass, Tin platedHousing:PA66,UL94V-0·ELECTRICALRated voltage:300VRated current:10AContact resistance:20mΩInsulation resistance:5000MΩ\1000VWithstanding voltage :AC2000V\1MinWire range:26-14AWG1.5mm²·MechanicalTemp.rang:-40℃～+105℃Max.soldering:+250℃5S torque:0.5Nm(4.5lb.in)Strip length:5-6mm

Color
