Pluggable Terminal Block KF12EKD-2.50mm

Pluggable Terminal Block MATERIAL：-contact: Phosphor bronzePin header: -Housing: PA66，UL94V-0ElectricalULIECRated voltage150V 130V Rated current5A10AContact resistance20mΩInsulation resistance500MΩ/DC500VWithstanding voltage AC1250V/1minWire range24-20AWG 0.5mm²MechanicalTemp.rang-40℃～+105℃ Max.soldering+250℃,5secTorque-Strip length8

Color

Line count

Consult more

Product Parameters

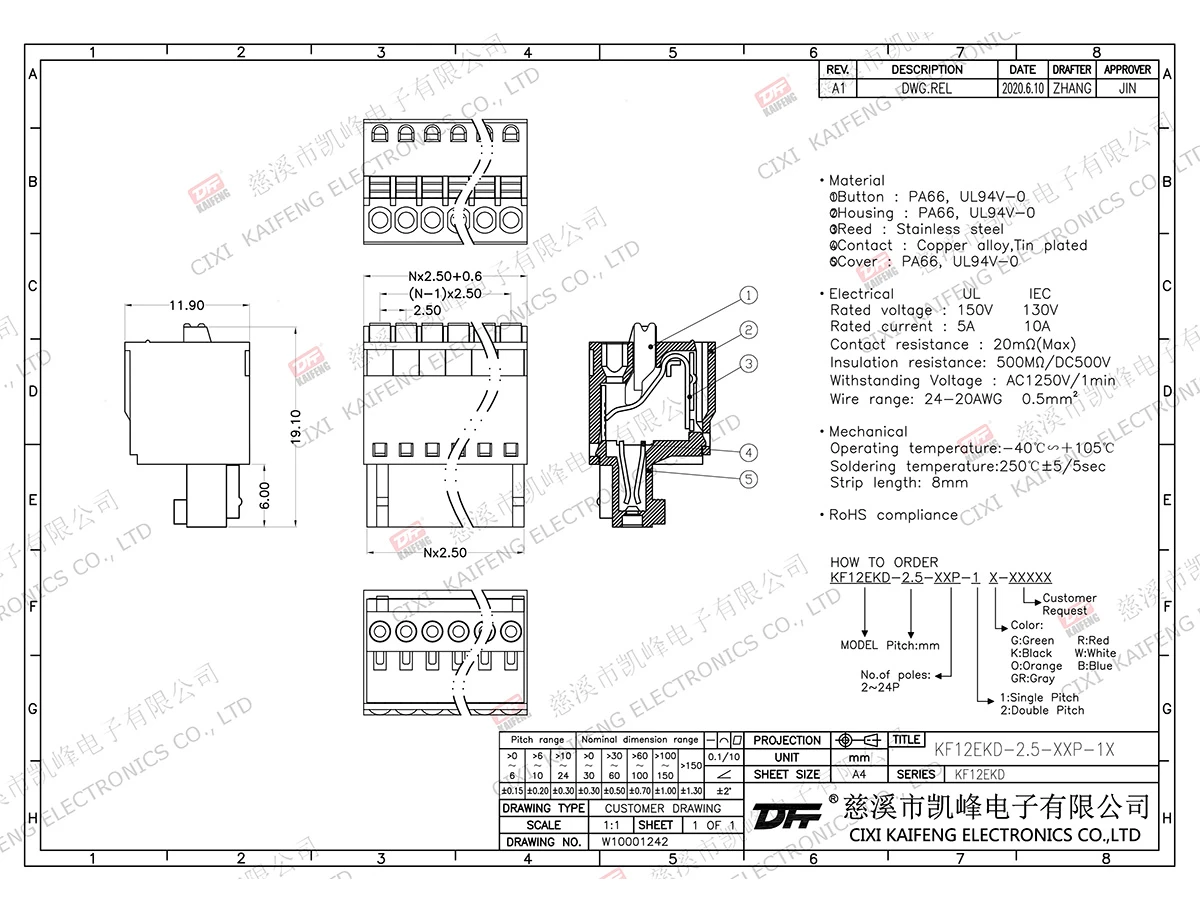

Product Drawing
