Pluggable Terminal Block KF2EDG-X-5.00mm
Pluggable Terminal Block MATERIAL:M3.0 Steel Galvanized contact: Phosphor bronzePin header:-Housing: PA66,UL94V-0ElectricalULIECRated voltage300V 320V Rated current15A20AContact resistance20mΩInsulation resistance500MΩ/DC500VWithstanding voltage AC2000V/1minWire range28-12AWG 2.5㎜²MechanicalTemp.rang-40℃~+105℃ Max.soldering+250℃,5se
Color
  • Kaifeng Electron
  • Kaifeng Electron
Line count
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P
  • 13P
  • 14P
  • 15P
  • 16P
  • 17P
  • 18P
  • 19P
  • 20P
  • 21P
  • 22P
  • 23P
  • 24P

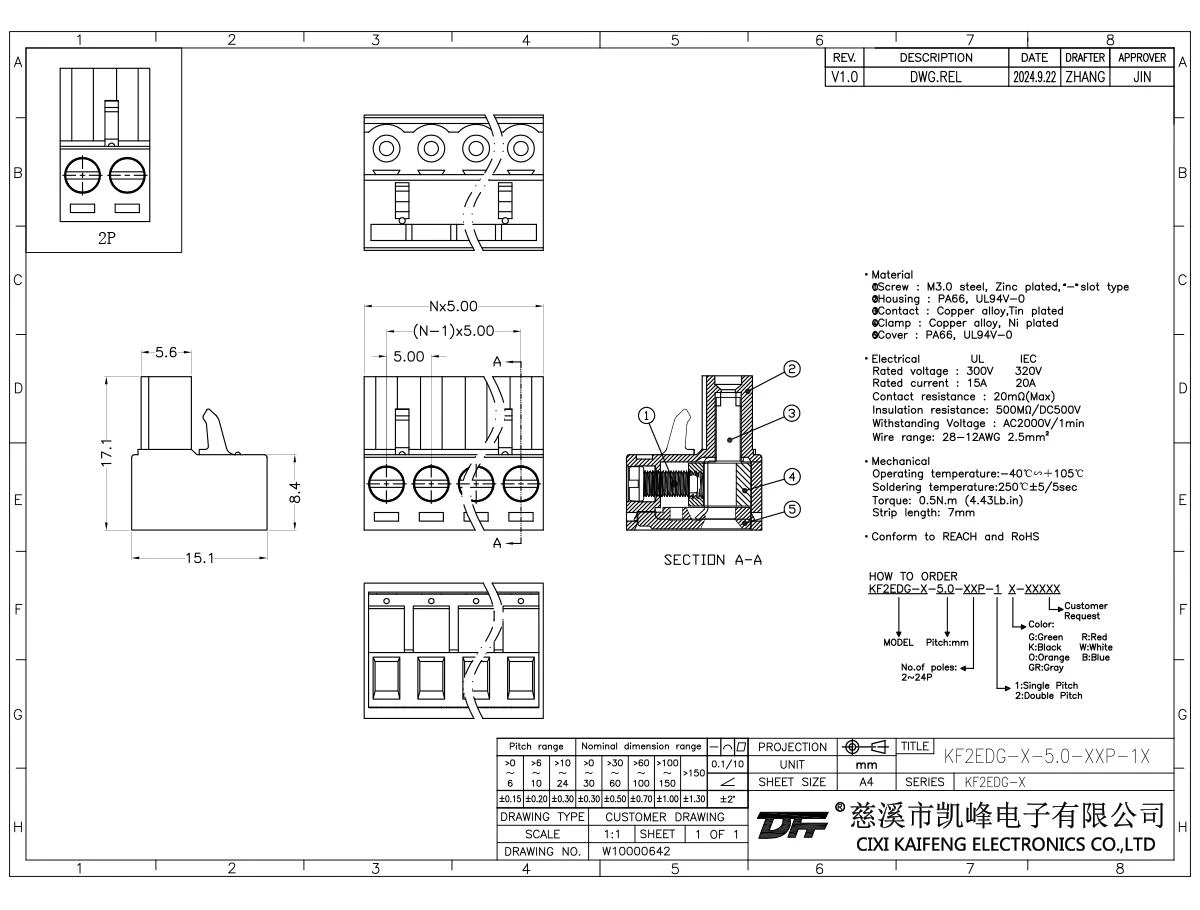

Product Drawing
Kaifeng Electron
Material and Plating
  • Screws
    M3.0 Steel Galvanized
  • Contact
    Phosphor bronze
  • Pin header
    -
  • Housing
    PA66,UL94V-0
Electrical properties
  • Rated voltage
    300V UL丨 320V lEC
  • Rated current
    15A UL丨 20A lEC
  • Contact resistance
    20mΩ
  • Insulation resistance
    500MΩ\DC500V
  • Withstanding voltage
    AC2000V\1Min
  • Wire range
    28-12AWG 2.5㎜²
Mechanical behavior
  • Temp.rang
    LOW-40℃ 丨TOP+105℃
  • Max.soldering
    +250℃,5sec
  • Torque
    0.5N.m 4.43Lb.in
  • Strip length
    7-8mm
Product packaging
  • Weight
    3.18g
  • SPQ
    100pcs
  • Packaging
    Bagged
  • MOQ
    1500pcs
  • Packaging
    Box42cm*28cm*27cm
