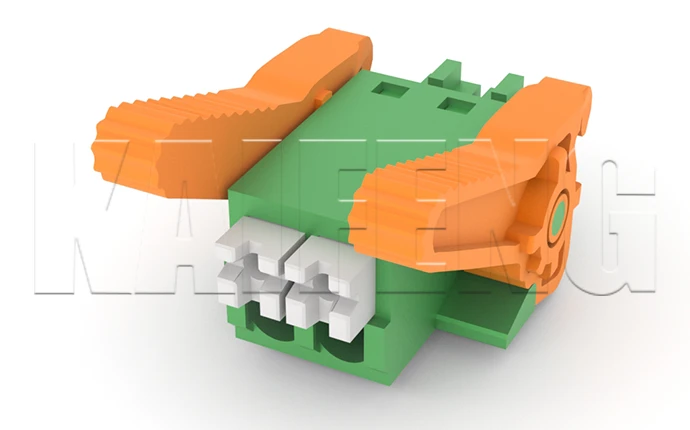

Pluggable Terminal Block 2KF003F-3.50mm
Pluggable Terminal Block MATERIAL:①Reed:PA66,UL94V-0 ②Clip : Stainless steel3 Button:Phosphor bronzeElectricalUL IEC Rated voltage300V 320V &
Color
  • Kaifeng Electron
  • Kaifeng Electron
Line count
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P
  • 13P
  • 14P
  • 15P
  • 16P
  • 17P
  • 18P
  • 19P
  • 20P
  • 21P
  • 22P
  • 23P
  • 24P

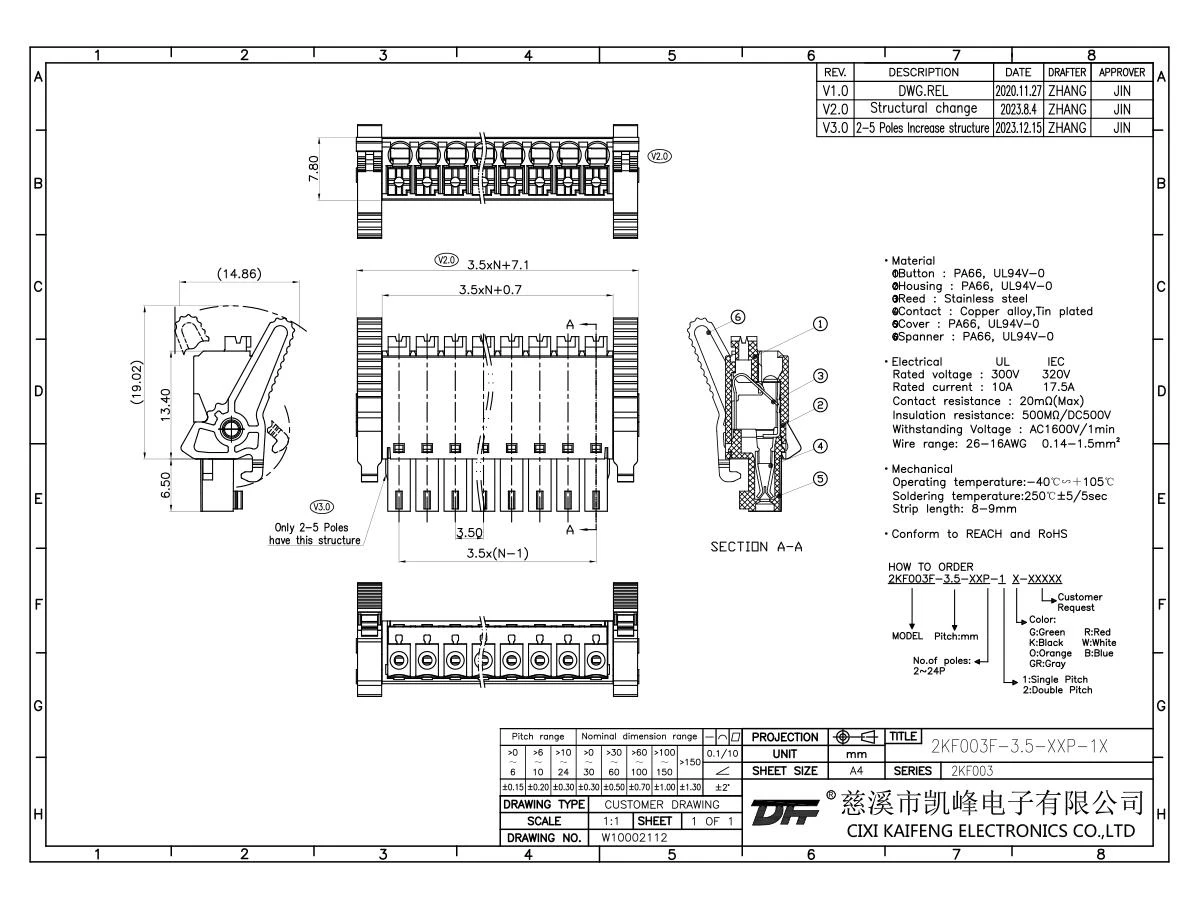

Product Drawing
Kaifeng Electron
Material and Plating
  • Reed
    PA66,UL94V-0
  • Clip
    Stainless steel
  • Button
    Phosphor bronze
Electrical properties
  • Rated voltage
    300V UL丨 320V lEC
  • Rated current
    10A UL丨 17.5A lEC
  • Contact resistance
    20mΩ
  • Insulation resistance
    500MΩ\DC500V
  • Withstanding voltage
    AC1500V\1Min
  • Wire range
    26-16AWG 0.14-1.5mm²
Mechanical behavior
  • Temp.rang
    LOW-40℃ 丨TOP+105℃
  • Max.soldering
    +250℃,5sec
  • Torque
    -
  • Strip length
    8-9mm
Product packaging
  • Weight
    xg
  • SPQ
    12pcs
  • Packaging
    Bagged
  • MOQ
    12pcs
  • Packaging
    Box45cm*28cm*27cm
