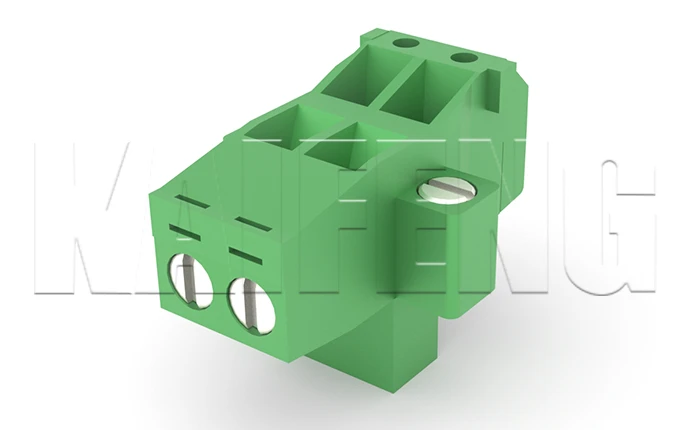

Pluggable Terminal Block 2KF002M-5.08mm

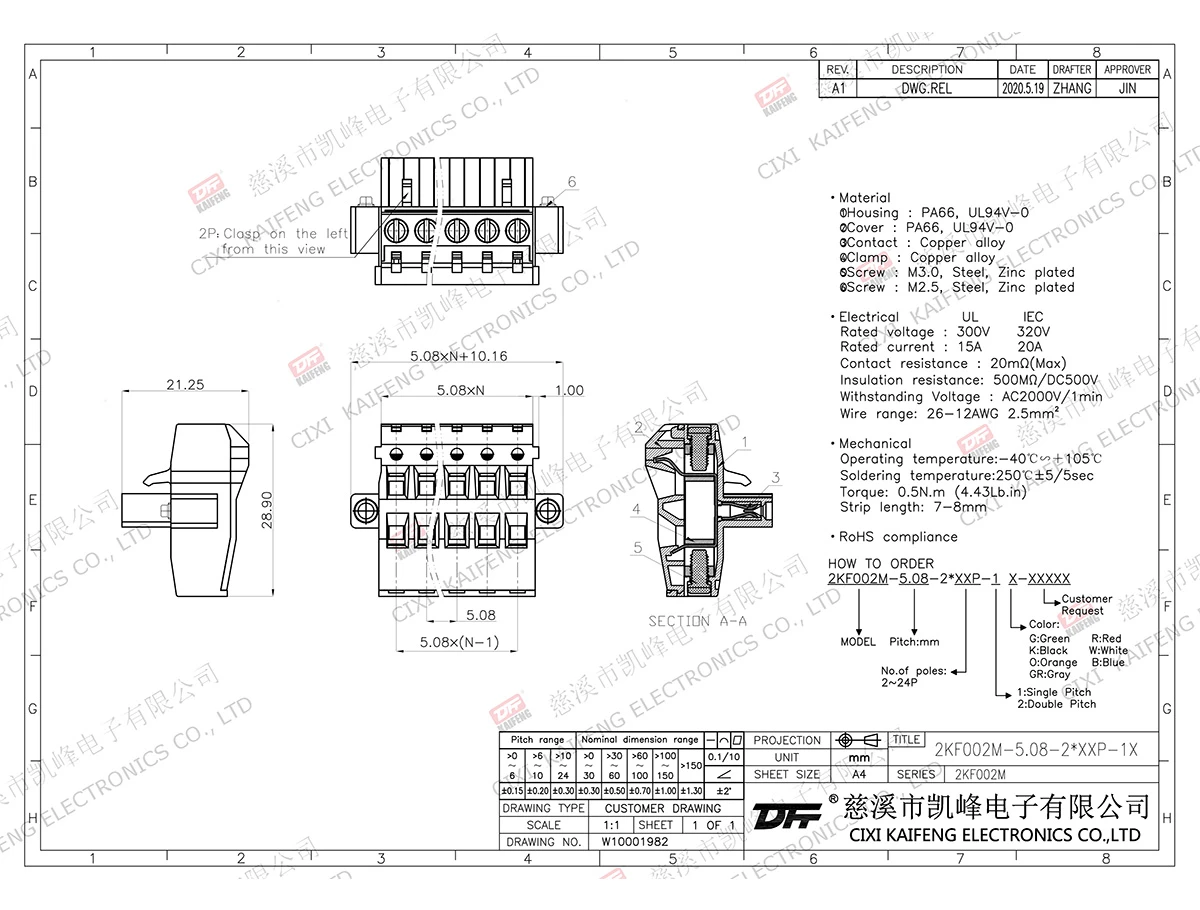

Pluggable Terminal Block MATERIAL：M3.0，SteelClip: Phosphor bronzeSquare: copper alloyHousing: PA66，UL94V-0ElectricalULIECRated voltage300V 320V Rated current15A20AContact resistance20mΩInsulation resistance500MΩ/DC500VWithstanding voltage AC2000V/1minWire range26-12AWG 2.5mm²MechanicalTemp.rang-40℃～+105℃ Max.soldering+250℃, 5sec

Color
